Herausragende Displaytechnologie

Innovativ, brilliant, zuverlässig und energieeffizient
für industrielle Anwendungen.

Microtech Technology Co., Ltd. ist seit 2001 auf die Entwicklung und Produktion von LCD-Modulen und Touchpanels spezialisiert – darunter TFTs sowie monochrome TN, STN Displays. Die Touchpanels umfassen resistive und kapazitive Technologien. Die Produkte zeichnen sich durch hohen Kontrast, schnelle Reaktionszeiten, weite Blickwinkel und energieeffiziente Leistung aus.

Die Produkte zeichnen sich durch hohen Kontrast, schnelle Reaktionszeiten, weite Blickwinkel und energieeffiziente Leistung aus. Ob industrielle Geräte, Medizintechnik, Smart-Home-Anwendungen oder Messinstrumente – weltweit vertrauen führende Unternehmen auf Microtechs Qualität und Innovationskraft. Dank starker F&E-Kompetenz, zertifiziertem Qualitätsmanagement nach ISO 9001:2015 und einem professionellen Kundenservice hat Microtech langfristige Partnerschaften mit internationalen Marken wie Huawei, Siemens, ZTE, TCL und anderen etabliert. Setzen Sie auf zuverlässige Displaytechnologie – Made by Microtech.

TFT

Die TFT-Displays von Microtech bieten brillante Darstellung, hohe Zuverlässigkeit und flexible Anpassung für industrielle Anwendungen. Erhältlich in Größen von 1,44″ bis 10,1″, mit oder ohne Touchpanel, überzeugen sie durch hohe Auflösung, weite Blickwinkel und starke Farbwiedergabe. AMC HighTech Components unterstützt Sie als Distributor bei Auswahl, Integration und Serienversorgung der passenden Microtech-Displays.

Übersicht Microtech TFT

Size [inches]	Part No.	Resolution [pixels]	Outline Dimension [mm]	Active Area [mm]	INTERFACE	IC / Connection	Remarks
0.60	MTF006AA01A-V2	128 * 150	12,16 * 15,43 * 1,41	9,29 * 10,89	4L-SPI	ST7735S, 12PIN	IPS /R
0.71	MTF0071AA01A-V1	160 * 160	20,12 * 22,30 * 1,41	18,80 * 18,80	4L-SPI	GC9D01 12PIN	IPS
0.85	MTF0085SN01A-V1	128 * 128	17,58 * 20,82 * 1,46	15,21 * 15,21	4L-SPI	GC9107 12PIN	IPS /S
0.90	MTF0090SN01A-V1	128 * 128	25,24 * 27,14 * 1,60	23,04 * 23,04	4L-SPI	ST7735S,10PIN	IPS /R
0.96	MTF096NF07A-V1	80 * 160	13,5 * 27,95 * 1,5	10,8 * 21,7	4L-SPI	ST7735S, 13PIN	IPS
0.96	MTF096NF11A-V1	80 * 160	27,95 * 14,04 * 1,76	21,7 * 10,8	SPI	NV3022B, 13PIN	IPS
1.06	MTF0106AA01A-V1	96 * 160	16,12 * 29,76 * 1,69	13,82 * 23,04	SPI	GC9107 13PIN	IPS /B
1.09	MTF011QV01A-V2	240 * 240	30,59 * 32,98 * 1,56	27,79 * 27,79	SPI	GC9D01 15PIN	IPS /R
1.14	MTF011CF04A-V1	135 * 240	17,60 * 31,00 * 1,6	14,86 * 24,91	SPI	ST7789V, 13PIN	IPS, 400Nits
1.22	MTF012QV01A -V1	240 * 204	33,66 * 33,02 * 1,30	φ30,96	SPI	ST7789H2, 12PIN	IPS
1.30	MTF013QV02A-V1	240 * 240	26,0 * 29,15 * 2,05	23,4 * 23,4	4L-SPI	ST7789V, 12PIN	TN /S
1.30	MTF013QV11A-V1	240 * 240	26,16 * 29,22 * 1,5	32,4 * 32,4	SPI	GC9A01, 24PIN	IPS /S
1.30	MTF013QV12B-V1	240 * 240	26,16 * 29,22 * 1,5	32,4 * 32,4	MCU/SPI	GC9A01, 39PIN	IPS/R, 1000Nits
1.30	MTF013QV14A-V1	240 * 240	35,6 * 37,74 * 1,95	32,4 * 32,4	MCU/SPI	GC9A01, 39PIN	IPS /R
1.39	MTF0139AA01A-V1	360 * 360	37,80 * 39,77 * 1,41	35,30 * 35,30	MCU 8Bit	GC9B71, 24PIN	IPS /R
1.44	MTF014QV05A-V1	240 * 240	28,00 * 31,35 * 1,65	25,2 * 25,2	SPI	CG9307, 10PIN	IPS
1.44	MTF0144SN-06	128 * 128	32,36 * 38 * 2,5	25,49 * 26,5	MCU(P/S)	ILI9163V, 29PIN CTP	*****
1.44	MTF0144SN09DV1	128 * 128	29 * 34,1 * 2,3	25,49 * 26,5	MCU(P)	ST7735S, 23PIN
1.47	MTF0147AA01A-V1	172 * 320	19,75 * 36,86 * 1,56	17,65 * 32,83	4L-SPI	CG9307, 8PIN	IPS /B
1.47	MTF0147AA04A-V1	60 * 160	15,90 * 32,0 * 2,09	13,10 * 34,94	4L-SPI	NV3022B, 10PIN	TN
1.50	MTF015WT04A-V1	480 * 240	37,08 * 32,70 * 2,50	29,76 * 22,32	SPI+8Bit RGB	OTA5182A, 31PIN	TN
1.50	MTF015QV06A-V1	240 * 240	31,52 * 33,72 * 1,92	27,72 * 27,72	4L/SPI	ST7789T3, 12PIN	IPS /S
1.50	MTF015QV08A-V1	240 * 240	31,52 * 33,72 * 1,92	27,72 * 27,72	4L/SPI	ST7789T3, 12PIN	IPS /S
1.52	MTF0152XD01A-V1	360 * 360	41,97 * 40,08 * 1,46	37,58 * 37,58	MCU 8Bit	ST77916, 24PIN	IPS /R
1.60	MTF016AM07A-V1	400 * 400	42,94 * 45,89 * 2,0	39,84 * 39,84	QSPI	ST77903, 24PIN	IPS /R
1.69	MTF0169QV02A-V1	240 * 280	30,07 * 37,43 * 1,6	27,97 * 32,63	4L/SPI	ST7789V, 15PIN	IPS
1.77	MTF0177SN-07	128 * 160	34,0 * 43,8 * 2,4	28,03 * 35,04	MCU(P)	ST7735S, 20PIN	TN
1.77	MTF0177SN-10	128 * 160	34,0 * 43,8 * 2,4	28,03 * 35,04	MCU(S)	ILI9163V, 14PIN	TN
1.77	MTF0177SN-13	128 * 160	34,0 * 43,8 * 2,4	28,03 * 35,04	MCU(P/S)	ILI9163V, 20PIN	TN
1.77	MTF0177SN-20	128 * 160	34,0 * 43,8 * 2,4	28,03 * 35,04	MCU(S)	ILI9163V, 20PIN	1000Nits
1.77	MTF0177SN29A-V1	128 * 160	34,0 * 43,80 * 2,4	28,03 * 35,04	MCU	ST7735R, 29PIN	TN
1.80	MTF018XD01A-V1	360 * 360	48,08 * 49,95 * 1,9	45,68 * 45,68	4L/SPI	ST77916, 10PIN	IPS /R
1.90	MTF019AA01A-V1	170 * 320	25,80 * 49,72 * 1,36	22,70 * 42,72	MCU 8Bit	ST7789V, 30PIN	IPS /B
1.96	MTF0196HT01A-V1	320 * 386	33,10 * 41,32 * 1,55	31,10 * 37,52	QSPI	ST77916, 10PIN
2.00	MTF020QV01A-V1	240 * 320	36,05 * 51,8 * 2,26	30,6 * 40,8	MCU 8Bit	ST7789, 22PIN	IPS
2.00	MTF020QV03A-V1	240 * 320	36,05 * 51,8 * 2,26	30,6 * 40,8	MCU(P)&RGB	ST7789, 40PIN	IPS
2.00	MTF020QV06A-V1	320 * 240	46,1 * 40,96 * 2,53	40,8 * 30,6	4L-SPI	ILI9342C, 16PIN	IPS
2.00	MTF020QV07B-V1	240 * 320	36,05 * 51,8 * 2,26	30,6 * 40,8	4L-SPI	ST7789, 12PIN	IPS
2.00	MTF020AA08A-V1	480 * 360	46,10 * 40,96 * 2,52	40,82 * 30,62	RGB18-bit+SPI	ST7701S, 40PIN	IPS
2.00	MTF020AA10A-V1	240 * 296	34,04 * 43,32 * 1,6	32,04 * 39,82	4L-SPI	CG9307, 13PIN	IPS
2.00	MTF020VL12A-V1	480 * 640	34,60 * 47,80 * 1,97	30,60 * 41,05	MIPI	ST7701S, 22PIN	IPS
2.10	MTF021SV03B-V1	480 * 480	56,18 * 59,71 * 2,66	53,28 * 53,28	MIPI	ST7701S, 40PIN	IPS /R
2.10	MTF021SV08A-V1	480 * 480	56,18 * 59,71 * 2,3	53,28 * 53,28	MIPI	ST7701S, 30PIN	IPS /R, 800Nits
2.10	MTF021SV10A-V1	480 * 480	56,18 * 59,71 * 2,3	53,28 * 53,28	RGB18-bit+SPI	ST7701S, 30PIN	IPS /R
2.20	MTF0220CN-08	176 * 220	42,1 * 56,60 * 4,2	34,85 * 43,56	MCU(P)	ILI9225C, 35PIN	***
2.40	MTF022QV03A-V1	240 * 320	38,04 * 53,67 * 2,5	33,84 * 45,12	MCU(P)	ST7789, 40PIN	TN
2.40	MTF0240CMIL-06	240 * 320	42,72 * 60,26 * 2,6	36,72 * 48,96	MCU(P)	ILI9341, 24PIN	TN
2.40	MTF0240QN-14	240 * 320	42,72 * 59,46 * 2,45	36,72 * 48,96	MCU(P)&RGB	ILI9341, 40PIN	TN
2.40	MTF024QV33B-V1	240 * 320	42,72 * 58,60 * 2,27	36,72 * 48,96	MCU(S)	ST7789V, 40PIN	IPS
2.40	MTF024QV33C-V1	240 * 320	42,72 * 58,9 * 2,20	36,72 * 48,96	MCU(P)	ST7789V, 40PIN	550Nits
2.40	MTF024QV35A-V1	240 * 320	42,72 * 58,60 * 2,27	36,72 * 48,96	MCU(S)	ST7789V, 8PIN	IPS
2.40	MTF024QV36A-V1	240 * 320	42,72 * 60,26 * 202	36,72 * 48,96	RGB	ILI9341V, 45PIN	TN
2.40	MTF024QV37A-V1	240 * 320	42,72 * 58,8 * 2,27	36,72 * 48,96	SPI	ST7789, 10PIN	IPS
2.40	MTF024QV38A-V1	240 * 320	42,72 * 58,60 * 2,27	36,72 * 48,96	MIPI	JD9852, 20PIN	IPS
2.40	MTF024QV41A-V1	240 * 320	42,72 * 60,26 * 2,27	36,72 * 48,96	MCU	ST7789V, 30PIN	TN, 400Nits
2.40	MTF024QV45A-V1	240 * 320	42,72 * 60,4 * 2,20	36,72 * 48,96	MCU	ILI9341V, 40PIN	IPS, 800Nits
2.40	MTF024QV47A-V1	240 * 320	42,72 * 58,6 * 2,27	36,72 * 48,96	SPI4	ST7789, 10PIN	IPS
2.40	MTF024QV51A-V1	240 * 320	42,72 * 60,26 * 2,3	36,72 * 48,96	SPI4	ST7789, 10PIN	IPS
2.40	MTF024QV53A-V1	240 * 320	42,72 * 58,6 * 2,27	36,72 * 48,96	SPI4	ST7789; 12PIN	IPS
2.40	MTF024VL55B-V1	480 * 640	42,62 * 58,50 * 2,15	36,72 * 48,93	MIPI	ST7701S, 31PIN	IPS
2.50	MTF025SV01A-V1	480 * 480	69,19 * 71,74 * 2,45	62,64 * 62,64	MIPI	ST7789V, 35PIN
2.60	MTF0260CMRS-02	240 * 400	68,35 * 41,0 * 2,8	57,0 * 34,2	MCU	R61509A, 20PIN	TN
2.80	MTF0280QT-14	240 * 320	50,0 * 69,2 * 2,45	43,20 * 57,6	MCU(P)	ILI9341V, 36PIN +C/ RTP
2.80	MTF0280QT-17	240 * 320	50,0 * 69,2 * 2,45	43,20 * 57,6	RGB	ILI9341V, 36PIN +C/ RTP
2.80	MTF0280QT-18	240 * 320	50,0 * 69,2 * 2,45	43,20 * 57,6	MCU(P)	ILI9341V, 37PIN +C/ RTP
2.80	MTF0280QT-30	240 * 320	50,0 * 69,2 * 2,45	43,20 * 57,6	MCU(P)	ILI9341V, 37PIN +C/ RTP
2.80	MTF0280QT-32	240 * 320	50,0 * 69,2 * 2,45	43,20 * 57,6	RGB	ILI9341V, 50PIN	TN
2.80	MTF0280QT-36	240 * 320	50,0 * 69,2 * 2,45	43,20 * 57,6	MCU(S)	ST789V, 24PIN	TN
2.80	MTF0280QNI41B-V1	240 * 320	50,0 * 69,2 * 2,32	43,20 * 57,6	SPI(S)	ST7789V, 15PIN
2.80	MTF028QV49A-V1	240 * 320	50,0 * 69,2 * 2,32	43,20 * 57,6	MCU	ST7789V, 37PIN	TN
2.80	MTF028QV58A-V1	240 * 320	50,0 * 69,2 * 2,30	43,20 * 57,6	MCU	ILI9341V, 40PIN	TN, +RTP
2.80	MTF028QV62A-V1	240 * 320	50,0 * 69,2 * 2,32	43,20 * 57,6	MCU(P)&SPI	ST7789, 50PIN	IPS, 500Nits
2.80	MTF028QV66A-V1	240 * 320	50,0 * 69,2 * 2,43	43,20 * 57,6	MCU&RGB	ILI9341V, 40PIN	TN
2.80	MTF028SV67A-V1	480 * 480	73,0 * 77,59 * 2,3	70,13 * 70,13	SPI3W+RGB18	ST7701S, 40PIN	IPS/R, 500Nits
2.80	MTF028SV69A-V1	480 * 480	73,0 * 77,59 * 2,3	70,13 * 70,13	SPI3W+RGB18	ST7701S, 40PIN	IPS /Y
2.80	MTF028VL73A-V1	480 * 640	50,0 * 69,2 * 2,34	43,2 * 57,6	SPI3W+RGB18	ST7701S, 24PIN	IPS
2.80	MTF028VL83A-V1	480 * 640	50,0 * 69,2 * 2,34	43,2 * 57,6	MIPI	ST7701S, 24PIN	IPS
2.73	MTF0273QH01A-V1	320 * 320	53,58 * 58,75 * 2,5	48,96 * 48,96	SPI3W+RGB18	ST7796S, 40PIN	IPS /B
2.79	MTF028AA81A-V1	142 * 428	24,38 * 69,43 * 2,1	21,28 * 64,14	SPI4	NV3007, 10PIN	IPS /B /W
2.86	MTF0286AA01A-V1	376 * 960	31,20 * 76,60 * 2,13	26,51 * 67,68	MIPI	ST7701S, 24PIN	IPS /B
2.95	MTF0295VV01A-V1	360 * 640	40,94 * 74,38 * 2,24	36,72 * 65,2/	RGB 24 ibt	ST7701S, 40PIN	IPS, 350Nits
2.99	MTF030WV11A-V1	268 * 800	25,40 * 78,75 * 1,95	22,86 * 71,75	SPI3W+RGB18	ST7701S, 40PIN	IPS /B
3.00	MTF0300CPIL-08	960 * 240	43,44 * 74,79 * 2,60	36,84 * 65,52	SPI 8 BIT	ILI8961 40PIN	TN
3.00	MTF030WG02A-V1	240 * 400	45,04 * 77,0 * 2,54	38,88 * 64,8	8/16Bit MCU	ST7793 45PIN	TN
3.00	MTF030FV12A-V1	480 * 854	42,04 * 73,67 * 2,2	36,72 * 65,28	MIPI	ST7701S, 30PIN	IPS
3.02	MTF030AA14A-V1	170 * 560	24,63 * 78,41 * 1,55	22,13 * 72,91	MCU 8Bit	AXS15231B, 20PIN	IPS /B
3.10	MTF031WV04A-V1	480 * 800	43,44 * 75,32 * 1,8	40,32 * 67,2	18 RGB/MIPI	ST7701S, 25PIN	IPS
3.20	MTF0320CMIL-04	240 * 320	55,04 * 77,20 * 2,50	48,6 * 64,8	MCU(P)	ILI9341, 37PIN +C/ RTP	****
3.20	MTF0320CMIL-06	240 * 320	55,04 * 77,20 * 2,50	48,6 * 64,8	MCU(P)&RGB	ILI9341, 40PIN +C/ RTP	*****
3.20	MTF0320QT-08	240 * 320	55,44 * 77,60 * 3,0	48,6 * 64,8	MCU(P)	ILI9341, 40PIN +C/ RTP	****
3.20	MTF0320QT-09	240 * 320	55,04 * 77,20 * 2,45	48,6 * 64,8	MCU(P)	ILI9341V, 39PIN + RTP	*****
3.20	MTF0320QT-12	240 * 320	55,04 * 77,20 * 2,50	48,6 * 64,8	MCU(P)	ILI9341, 40PIN +C/ RTP	*****
3.20	MTF032QV20A-V1	240 * 320	55,04 * 77,7 * 2,50	48,60 * 64,80	MCU(P)&SPI	ST7789, 40PIN	IPS
3.20	MTF032QV13A-V1	240 * 320	55,04 * 77,7 * 2,50	48,60 * 64,80	MCU(P)&SPI	ST7789, 40PIN	TN
3.20	MTF032AA16A-V1	376 * 960	31,2 * 76,6 * 2,2	26,5 * 67,68	MCU	ST77019, 30PIN	IPS
3.20	MTF032XA21A-V1	1024 * 768	69,6 * 55,5 * 2,1	64,51 * 48,38	MIPI	JD9168, 30PIN	IPS
3.20	MTF032QV24A-V1	240 * 320	55,04 * 77,50 * 2,50	48,60 * 64,80	SPI4	ST7789, 18PIN	IPS
3.40	MTF034XVZ01	800 * 800	99,0 * 96,6 * 3,98	87,6 * 87,6	MIPI	ILI9881C, 39PIN, HX8526
3.40	MTF034WV02A-V1	800 * 800	99,0 * 96,6 * 3,98	87,6 * 87,6	MIPI	ILI9881C, 39PIN, HX8526	IPS, with CTP /Y
3.40	MTF034TS03A-V1	412 * 960	36,64 * 86,02 * 2,01	33,99 * 79,2	SPI3W+RGB /MIPI	GC9503CV, 40PIN	IPS /B
3.40	MTF034SV05A-V1	480 * 480	65,72 * 69,64 * 2,45	60,48 * 60,48	3WSPI+RGB18BIT	ST7001S, 40PIN	IPS /S
3.40	MTF034SV06A-V1	480 * 480	65,72 * 69,64 * 2,45	60,48 * 60,48	MIPI	ST7001S, 40PIN	IPS /S, 550Nits
3.50	MTF0350CMHX-05	320 * 240	76,9 * 63,9 * 2,95	70,08 * 52,56	RGB	H*8238D, 54PIN + R/CTP	*****
3.50	MTF0350HT-06	320 * 480	54,66 * 82,94 * 2,30	48,96 * 73,44	MCU(P)&RGB	ILI9488, 40PIN + R/CTP	*****
3.50	MTF035HT27C-V3	320 * 480	54,50 * 83,0 * 2,35	48,96 * 73,44	MCU(P)	ST7796S, 40PIN	TN
3.50	MTF0350QT-28A	320 * 240	76,84 * 63,84 * 3,15	70,08 * 52,58	MCU(P)&RGB	SSD2119, 50PIN	TN
3.50	MTF035HT30D-V1	320 * 480	54,56 * 82,84 * 2,15	48,96 * 73,44	MCU(P)&RGB	ILI9488, 50PIN + R/CTP	IPS
3.50	MTF035HT31B-V1	320 * 480	54,48 * 84,71 * 3,4	48,96 * 73,44	SPI	ST7796S, 16PIN	TN
3.50	MTF035QT34A-V1	320 * 240	76,90 * 63,90 * 3,26	70,08 * 52,56	RGB	ST7272, 54PIN	IPS, 500Nits
3.50	MTF035HT36A-V1	320 * 480	54,56 * 82,84 * 2,15	48,96 * 73,44	SPI	ST7796S, 20PIN	IPS
3.50	MTF035HT37A-V1	320 * 480	53,56 * 82,84 * 2,15	48,96 * 73,44	MCU(P)	ILI9488, 30PIN	IPS
3.50	MTF035HT39A-V1	320 * 480	54,56 * 82,84 * 2,15	48,96 * 73,44	MIPI	ST7796S, 20PIN	IPS
3.50	MTF035HT60A-V1	320 * 480	54,56 * 82,84 * 2,15	48,96 * 73,44	MIPI	ST7796S, 26PIN	IPS
3.50	MTF035HT69A-V1	320 * 480	54,56 * 82,84 * 2,15	48,96 * 73,44	SPI	ST7796S, 20PIN	IPS
3.50	MTF035QT40A-V1	320 * 240	76,90 * 63,90 * 4,40	70,08 * 52,56	3L-SPI+RGB	HX8238D, 54PIN	TN
3.50	MTF035QT48A-V1	320 * 240	76,9 * 63,9 * 3,26	70,08 * 52,56	24B RGB+SPI	HX8238D, 28PIN	TN, 760Nits
3.50	MTF035DV41A-V1	640 * 960	54,56 * 82,84 * 2,15	49,92 * 74,88	MIPI	ST7703, 30PIN	IPS
3.50	MTF035VG67A-V1	640 * 480	76,84 * 63,89 * 3,27	70,08 * 52,56	RGB 24 ibt	NV3052C, 54PIN	IPS
3.50	MTF035DV49A-V1	640 * 960	54,56 * 82,84 * 2,15	49,92 * 74,88	MIPI	ST7703, 30PIN	IPS
3.50	MTF035DV68A-V1	640 * 960	54,56 * 82,84 * 2,3	49,92 * 74,88	MIPI	ST7703, 30PIN	IPS
3.50	MTF035AA61A-V1	800 * 640	97,6 * 83,6 * 4,0	90,0 * 72,0	3SPI+24RGB	FL5893DA, 40PIN	IPS, Semi-Circular
3.50	MTF035WV71A-V1	480 * 800	51,32 * 86,61 * 2,2	45,36 * 75,60	3SPI+24RGB	ST7701, 40PIN	IPS
3.50	MTF035VG74A-V1	640 * 480	76,84 * 63,84 * 3,2	70,08 * 52,56	MIPI	ST7703, 30PIN	IPS
3.50	MTF035HD78A-V1	720 * 1280	47,20 * 84,58 * 1,64	43,70 * 77,68	MIPI	ST7703, 31PIN	IPS
3.51	MTF035AA75A-V1	340 * 800	36,67 * 88,45 * 1,4	33,97 * 81,0	3SPI+24RGB	ST7701, 34PIN	IPS /B
3.70	MTF037AA01A-V1	240 * 960	25,30 * 98,89 * 1,65	22,86 * 91,44	3SPI+24RGB	ST7701, 40PIN	IPS /B
3.90	MTF039BO06A-V1	480 * 1280	105,5 * 40,64 * 2,95	95,04 * 25,34	3SPI+24RGB	NV3047, 40PIN	IPS /B
3.92	MTF0392QH03A-V1	320 * 320	76,72 * 74,86 * 3,33	71,13 * 69,82	MCU/MIPI	ILI9488, 40PIN	IPS /S
3.92	MTF0392QH05A-V1	320 * 320	74,86 * 76,73 * 2,17	71,14 * 69,82	MCU	ST7365P, 40PIN	IPS /S
3.95	MTF0395SVN-02A	480 * 480	77,0 * 88,0 * 2,3	71,86 * 70,18	MIPI	ST7701S, 30PIN	IPS, 700Nits
3.95	MTF0395SVN03A-V1	480 * 480	77,0 * 80,0 * 2,3	71,86 * 70,18	SPI & RGB	ST7701S, 30PIN	IPS, 1000Nits
3.95	MTF0395SVN26A-V1	480 * 480	77,0 * 80,0 * 2,3	71,86 * 70,18	SPI & RGB	ST7701S, 40PIN	IPS, 1000Nits
3.97	MTF0397SWI-03	480 * 800	57,14 * 96,85 * 2,00	51,84 * 86,40	MCU(P)&RGB	ILI9806G, 50PIN	IPS
3.97	MTF0397SWI-06	480 * 800	57,14 * 96,85 * 2,00	51,84 * 86,40	MIPI	OTM8019A, 20PIN	IPS
3.97	MTF0397SWI07B	480 * 800	57,14 * 96,85 * 2,15	51,84 * 86,40	MIPI	OTM8019A, 20PIN	IPS
3.97	MTF0397SWV08A-V1	480 * 800	57,14 * 96,90 * 2,3	51,84 * 86,40	RGB	ILI9806E, 51PIN	TN
3.97	MTF0397WV11A-V1	480 * 800	57,14 * 96,85 * 2,15	51,84 * 86,40	RGB	ILI9806, 50PIN	IPS
3.97	MTF0397SWV16A-V1	480 * 800	57,14 * 96,85 * 2,15	51,84 * 86,40	MIPI	ILI9806, 25PIN	TN
3.97	MTF0397SWI28A-V1	480 * 800	57,14 * 96,85 * 2,00	51,84 * 86,40	MCU(P)&RGB	NT35510, 51PIN	IPS
4.00	MTF040WV29A-V1	480 * 800	55,44 * 96,17 * 1,85	51,84 * 86,40	MIPI	NT35510, 40PIN	IPS
4.00	MTF040WV30A-V1	480 * 800	57,14 * 96,85 * 2,00	51,84 * 86,40	3SPI+24RGB	ST7701S, 50PIN	IPS
4.00	MTF040HD15A-V4	720 * 720	74,83 * 78,98 * 2,1	71,93 * 71,93	MIPI	ST7703, 30PIN	IPS /S
4.00	MTF040HD23A-V2	720 * 720	107,60 * 111,87 * 2,1	71,93 * 71,93	MCU16bit	ST7703, 30PIN	IPS /R
3.99	MTF040AA27A-V1	400 * 960	41,40 * 101,58 * 2,06	39,18 * 94,03	3SPI+24RGB	ST7701, 40PIN	IPS /B
4.30	MTF043WT13A-V2	480 * 272	105,5 * 67,2 * 3,0	95,04×53,86	RGB	45PIN	IPS
4.30	MTF043WT14A-V1	480 * 272	105,5 * 67,2 * 3,0	95,04×53,86	RGB	40PIN	IPS
4.30	MTF04356B0-40	480 * 272	105,5 * 67,2 * 3,0	95,04 * 53,85	RGB	ST7282, 40PIN	TN
4.30	MTF043FWI-09B	480 * 800	61,90 * 104,9 * 2,0	56,16 * 93,60	MIPI	ILI9806E, 45PIN	IPS
4.30	MTF043FWI11A-V1	480 * 800	61,90 * 104,9 * 2,0	56,16 * 93,60	RGB	45PIN	IPS
4.30	MTF043WV43A-V1	480 * 800	60 * 104,25 * 1,95	56,16 * 93,60	MIPI	ST7701, 40PIN	IPS
4.30	MTF043WV23A-V1	800 * 480	105,5 * 67,2 * 2,95	95,04×53,86	RGB	40PIN	IPS, 800Nits
4.30	MTF043WV26A-V1	800 * 480	105,5 * 67,2 * 3,0	95,04×53,86	RGB	ST7282, 40PIN	IPS
4.30	MTF043WV28A-V1	800 * 480	105,5 * 67,2 * 3,0	95,04 * 53,86	RGB	40PIN	IPS, 1000Nits
4.30	MTF043WT31A-V1	480 * 272	105,5 * 67,2 * 3,0	95,04 * 53,86	RGB	40PIN	IPS
4.30	MTF043WT38A-V1	480 * 272	105,5 * 67,2 * 3,0	95,04 * 53,86	RGB	NV3041A, 40PIN	IPS, 800Nits /W
4.30	MTF043WT40A-V1	480 * 272	105,5 * 67,2 * 3,0	95,04 * 53,86	RGB 8bit	40PIN	IPS
4.30	MTF043WV34A-V1	800 * 480	105,5 * 67,15 * 2,9	95,04 * 53,86	RGB	40PIN	IPS
4.30	MTF043WV42A-V1	800 * 480	105,5 * 67,15 * 2,9	95,04 * 53,86	RGB	40PIN	IPS/W
4.30	MTF043FD25A-V1	1920 * 1080	106,34 * 66,01 * 2,32	100,8 * 56,7	SPI / IIC / LVDS	60PIN	IPS, 1000Nits
4.50	MTF045FW08A-V1	480 * 854	60,0 * 109,0 * 1,80	55,44 * 98,64	RGB	ST7701S, 40PIN	IPS
4.50	MTF045FW10A-V1	480 * 854	60,0 * 109,0 * 1,80	55,44 * 98,64	MIPI	ST7701S, 45PIN	IPS
4.50	MTF0450QHI-07	540 * 960	60,0 * 109,0 * 1,85	55,52 * 98,7	MIPI	HX8389B, 25PIN	IPS
4.50	MTF045FV11A-V1	480 * 854	60,0 * 109,0 * 1,80	55,44 * 98,64	MIPI	ST7701S, 30PIN	IPS
4.60	MTF046WQ01A-V1	800 * 320	120,70 * 56,16 * 3,10	108,00 * 43,32	RGB-24bit	ILI5960/ILI6122, 40PIN	TN/B
4.60	MTF046AA02A-V1	320 * 960	41,57 * 118,80 * 2,54	36,77 * 110,30	RGB-24bit	ST7701S, 40PIN	IPS/B
4.70	MTF047HD01A-V1	720 * 1280	60,5 * 110,85 * 1,65	58,10 * 103,30	MIPI	ST7703D, 30PIN	IPS, 450Nits
5.00	MTF050WT36A-V1	480 * 272	120,70 * 75,80 * 3,1	110,88 * 62,83	RGB	ILI6482, 40PIN	TN
5.00	MTF050NA-01G	800 * 480	120,7 * 76,30 * 3,1	108,0 * 64,80	RGB	50PIN +R/CTP	****
5.00	MTF050PA5SV1.0	800 * 480	120,7 * 75,80 * 3,1	108,0 * 64,80	RGB	40PIN +R/CTP	****
5.00	MTF050PA5SV1.0B	800 * 480	120,7 * 75,90 * 3,05	108,0 * 64,80	RGB	ILI6122/ILI5960, 40PIN	TN
5.00	MTF050WV45A-V1	800 * 480	120,70 * 75,90 * 3,05	108,0 * 61,8	RGB	40PIN	IPS, 500Nits
5.00	MTF050WV50A-V1	800 * 480	120,70 * 75,9 * 5,0	108,0 * 64,80	RGB	50PIN	IPS, 1000Nits, Automotive-Grade
5.00	MTF050WV58A-V1	800 * 480	120,70 * 75,9 * 5,0	108,0 * 64,80	RGB	50PIN	IPS
5.00	MTF050WV60A-V1	800 * 480	120,7 * 75,8 * 2,9	108,0 * 64,80	RGB	40PIN	IPS, 1000Nits
5.00	MTF050WV65A-V1	800 * 480	120,7 * 75,8 * 2,9	108,0 * 64,80	LVDS	40PIN	IPS
5.00	MTF050WV67A-V1	800 * 480	120,7 * 75,8 * 3,0	108,0 * 64,80	RGB	40PIN	IPS, 420Nits
5.00	MTF050WV70A-V1	800 * 480	120,7 * 75,8 * 3,0	108,0 * 64,80	RGB	40PIN	IPS, 400Nits
5.00	MTF050TN22 V.1	640 * 480	117,65 * 88,43 * 5,7	101,57 * 76,17	RGB	50PIN	****
5.00	MTF050FWI19B-V1	480 * 854	65,30 * 119,3 * 2,1	61,63 * 109,65	MIPI	ILI980E, 26PIN	IPS
5.00	MTF0500FWI21B	480 * 854	65,3 * 119,3 * 2,15	61,63 * 109,65	RGB	ILI980E, 45PIN	IPS
5.00	MTF050FV54A-V1	480 * 854	65,30 * 119,3 * 2,15	61,63 * 109,65	MIPI	ILI9881C, 31PIN	IPS
5.00	MTF050FV73A-V1	480 * 854	66,40 * 120,05 * 2,2	61,56 * 109,53	MIPI	ST7701, 40PIN	IPS
5.00	MTF050FV74A-V1	480 * 854	66,40 * 120,05 * 2,1	61,56 * 109,53	RGB-24bit	ST7701, 40PIN	IPS
5.00	MTF050HD35A-V1	720 * 1280	65,30 * 119,3 * 1,85	62,1 * 110,4	MIPI	ST7703D, 25PIN	IPS
5.00	MTF050HD59A-V1	720 * 1280	65,3 * 119,3 * 1,85	62,1 * 110,4	MIPI	ST7703D, 40PIN	IPS
5.00	MTF050HD66A-V1	720 * 1280	65,3 * 118,80 * 2,05	62,1 * 110,4	MIPI	JD9365, 30PIN	IPS
5.00	MTF050HD77A-V1	720 * 1280	65,30 * 119,30 * 1,6	62,1 * 110,4	MIPI	ILI9881C, 40PIN	IPS
5.00	MTF050FD38A-V1	1080 * 1080	143 * 140 * 4,20	127,0 * 127,0	MIPI	HX8399, 50PIN	IPS, Round /R
5.00	MTF050FD43A-V1	1080 * 1920	63,72 * 117,25 * 1,58	61,88 * 110,02	MIPI	HX8399-C, 34PIN	IPS, 600/1000Nits
5.00	MTF050FD55A-V1	1080 * 1920	63,72 * 117,25 * 1,58	61,88 * 110,02	MIPI	HX8399-C, 39PIN	IPS
5.50	MTF0550HDI-04	720 * 1280	71,14 * 130,19 * 1,70	68,04 * 120,96	MIPI	OTM1287A, 25PIN	IPS
5.50	MTF055FHD07A-V1	1080 * 1920	71,04 * 129,01 * 1,56	68,04 * 120,96	MIPI	ILI7807D, 25PIN	IPS
5.50	MTF055FD08A-V1	1080 * 1920	71,04 * 129,01 * 1,56	68,04 * 120,96	MIPI	ILI7807D, 25PIN	IPS
5.50	MTF055HD06A-V1	720 * 1280	71,04 * 129,56 * 1,6	67,93 * 120,77	MIPI	ST7703, 25PIN	IPS, 380Nits
5.50	MTF055HD11A-V1	720 * 1280	71,04 * 129,56 * 1,6	67,93 * 120,77	MIPI	ST7703, 25PIN	IPS
5.50	MTF055HD18A-V1	720 * 1280	70,35 * 128,10 * 1,55	68,04 * 120,98	MIPI	ST7703, 30PIN	IPS, 800Nits
5.50	MTF055FD16A-V1	1080 * 1920	71,00 * 129,66 * 1,65	68,04 * 120,96	MIPI	ILI9885, 26PIN	IPS
5.50	MTF055QU13A-V1	2160 * 3840	70,26 * 133,1 * 1,67	68,04 * 120,96	MIPI	R63455, 60PIN	IPS
5.70	MTF056TN53V.1	640 * 480	126,5 * 100,0 * 5,7	112,89 * 84,67	RGB	40PIN, +CTP
5.70	MTF056TN52V.3	640 * 480	126,5 * 100,0 * 5,7	112,89 * 84,67	RGB	50PIN +R/CTP
5.70	MTF056VG01A-V1	640 * 480	145,0 * 110,0 * 15,3	113,5 * 85,0	RGB
5.70	MTF57010DHU-01	640 * 480	147,6 * 100 * 12,5	115,2 * 86,4	RGB	40PIN +RTP
5.70	MTF0570VGE-T01	640 * 480	144,0 * 104,6 * 12,3	115,2 * 86,4	RGB	33PIN +RTP
5.70	MTF057VG02A-V1	640 * 480	144,0 * 104,6 * 12,3	115,2 * 86,4	RGB	33PIN	TN
6.00	MTF060HD07A-V1	720 * 1280	76,75 * 140,28 * 1,66	73,98 * 131,52	MIPI	ST7703, 30PIN	IPS, 350Nits
6.00	MTF060HD09A-V1	720 * 1280	77,52 * 141,50 * 1,75	73,98 * 131,52	MIPI	ILI9881C, 30PIN	IPS, 450Nits
6.00	MTF060FD14A-V1	1080 * 1920	79,7 * 143,96 * 3,45	74,52 * 132,48	MIPI		IPS, 1200Nits
6.00	MTF060FD15A-V1	1080 * 1920	77,46 * 141,05 * 1,60	74,52 * 132,48	MIPI	NT35532, 30PIN	IPS
6.20	MTF062WV01A-V1	800 * 480	155,2 * 88,2 * 4,9	137,4 * 77,28	RGB	60PIN	TN, 400Nits
6.50	MTF065B0-50	800 * 320	165,0 * 69,0 * 4,2	154,08 * 57,28	RGB	50PIN	550Nits
6.80	MTF068HDB4001-V1	480 * 1280	66,6 * 181,0 * 4,64	60,22 * 160,59	MIPI	40PIN	B
6.80	MTF068HD05A-V1	480 * 1280	66,6 * 181,0 * 4,6	60,22 * 160,59	MIPI	N9707, 40PIN	IPS, 1000Nits
6.85	MTF0685AA01A-V1	280 * 1424	38,2 * 181,47 * 3,4	33,6 * 170,88	RGB	40PIN	IPS, 400Nits /B
7.00	MTF070TN90V.1	800 * 480	165,00 * 100,0 * 5,7/3,5	154,08 * 85,92	RGB	50PIN +R/CTP	*****
7.00	MTF070TN90V.1B	800 * 480	165,00 * 100,0 * 5,8	154,08 * 85,92	Parallel 8-bit RGB	50PIN
7.00	MTF070TN90V.1	800 * 480	165,00 * 100,0 * 5,8	154,08 * 85,92	RGB	50PIN +R/CTP	1000 Nits
7.00	MTF070TN92	800 * 480	165,00 * 100,0 * 5,7	154,08 * 85,92	RGB	50PIN +R/CTP	*****
7.00	MTF070TN83-V.1	800 * 480	165,00 * 104,0 * 5,5	152,4 * 91,44	TTL	40PIN	*****
7.00	MTF0700AT9309	800 * 480	165,00 * 104,0 * 5,2	152,4 * 91,44	TTL	40PIN	*****
7.00	MTF070WV11A-V1	800 * 480	165,00 * 100,00 * 3,50	153,84 * 85,63	RGB	40PIN	TN
7.00	MTF070WV11B-V1	800 * 480	165,00 * 100,00 * 3,50	153,84 * 85,63	RGB	40PIN	TN
7.00	MTF070WV42A-V1	800 * 480	165,00 * 100,00 * 5,50	154,21 * 85,92	RGB	50PIN	TN, 800Nits
7.00	MTF070WV44A-V1	800 * 480	164,9 * 100 * 5,7	154,08 * 85,92	RGB	50PIN	Military Grade, 1000Nits, OWT
7.00	MTF070WV48A-V1	800 * 480	165,00 * 100,00 * 5,50	154,08 * 85,92	RGB	50PIN	TN, 400Nits
7.00	MTF070WS02A-V1	1024 * 600	165,80 * 105,39 * 2,8	153,6 * 90,00	LVDS	40PIN	*****
7.00	MTF070WS08A-V1	1024 * 600	164,88 * 100,00 * 3,3	154,21 * 85,92	LVDS	40PIN	IPS
7.00	MTF070WS10A-V1	1024 * 600	164,90 * 100,00 * 5,0	154,21 * 85,92	LVDS	40PIN	TN, 500Nits
7.00	MTF070WS13A-V1	1024 * 600	165,00 * 100 * 5,7	154,21 * 85,92	RGB	50PIN	IPS, 1000Nits
7.00	MTF070WS14A-V1	1024 * 600	165,00 * 100 * 5,5	154,21 * 85,92	LVDS	40PIN	IPS, 1000Nits
7.00	MTF070WS14A-V2	1024 * 600	165,00 * 100 * 5,5	154,21 * 85,92	LVDS	40PIN	IPS, 500Nits
7.00	MTF070WS31A-V1	1024 * 600	163,80 * 97,00 * 2,6	154,21 * 85,92	MIPI	30PIN	IPS
7.00	MTF070WS37A-V1	1024 * 600	165,0 * 100,0 * 5,5	154,21 * 85,92	LVDS	40PIN	IPS, 450Nits
7.00	MTF070WS43A-V1	1024 * 600	163,8 * 97,0 * 2,3	154,21 * 85,92	LVDS	40PIN	IPS
7.00	MTF070WS45A-V1	1024 * 600	165,0 * 100 * 2,8	154,21 * 85,92	RGB	50PIN	TN, 500Nits
7.00	MTF070WS47A-V1	1024 * 600	163,8 * 97,0 * 2,6	154,21 * 85,92	RGB	50PIN
7.00	MTF070WS51A-V1	1024 * 600	164,9 * 100 * 3,25	154,21 * 85,92	MIPI	30PIN	IPS, 350Nits
7.00	MTF070WS58A-V1	1024 * 600	163,8 * 97,0 * 2,6	154,21 * 85,92	RGB
7.00	MTF070WS64A-V1	1024 * 600	164,9 * 99,9 * 5,5	154,21 * 85,92	LVDS	40PIN	TN, 1500Nits
7.00	MTF070WS64A-V1	1024 * 600	163,80 * 97,00 * 2,6	154,21 * 85,92	MIPI	30PIN	IPS
7.00	MTF070WS66A-V1	1024 * 600	165 * 100 * 5,8	154,21 * 85,92	MIPI	30PIN	IPS, 450Nits
7.00	MTF070WS74A-V1	1024 * 600	165 * 100 * 3,5	154,21 * 85,92	LVDS	20PIN	IPS, 300Nits
7.00	MTF070WS78A-V2	1024 * 600	165 * 100 * 3,5	154,21 * 85,92	RGB	50PIN	IPS, 500Nits 1*IC
7.00	MTF070WS78A-V4	1024 * 600	165 * 100 * 5,5	154,21 * 85,92	RGB	50PIN	IPS, 1000Nits 1*IC
7.00	MTF070WS78A-V1	1024 * 600	164,9 * 100,0 * 3,5	154,21 * 85,92	TTL	50PIN	IPS, 500Nits
7.00	MTF070WS105A-V1	1024 * 600	164,86 * 99,96 * 3,5	154,21 * 85,92	MIPI	40PIN	IPS, 550Nits
7.00	MTF070WS108A-V1	1024 * 600	164,2 * 96,86 * 3,5	154,21 * 85,92	MIPI	40PIN	IPS, 550Nits
7.00	MTF070WS78B-V1	1024 * 600	164,9 * 100,0 * 3,5	154,21 * 85,92	TTL	50PIN	IPS, 500Nits
7.00	MTF070WS79A-V1	1024 * 600	165,0 * 100,0 * 5,5	154,21 * 85,92	TTL	50PIN	IPS, Automotive-Grade
7.00	MTF070TN01-40NS01	1024 * 600	165,75 * 105,39 * 2,8	153,6 * 90,0	LVDS	40PIN
7.00	MTF070WX61A-V1	1280 * 800	161,0 * 107,0 * 2,5	149,76 * 93,6	LVDS	40PIN
7.00	MTF070WX65A-V1	800 * 1280	161,0 * 99,75 * 2,4	150,72 * 94,2	MIPI	31PIN	IPS
7.00	MTF070WX92A-V2	800 * 1280	99,81 * 161,06 * 2,65	94,2 * 150,7	MIPI	31PIN	IPS, 400Nits
7.00	MTF070WX49A-V1	800 * 1280	103,46 * 162,03 * 2,3	94,2 * 150,72	MIPI	40PIN
7.00	MTF070WX50A-V1	800 * 1280	99,5 * 160,8 * 2,40	94,2 * 150,72	MIPI	31PIN
7.00	MTF0700J16EA	1200 * 1920	161,20 * 105,5 * 2,12	150,72 * 94,20	MIPI	40PIN	450/ 800/ 1000Nits
7.00	MTF070ME050001	1200 * 1920	161,20 * 105,5 * 2,12	150,72 * 94,20	MIPI	31PIN	*****
7.00	MTF070UG53A-V1	1200 * 1920	105,46 * 162,82 * 2,4	94,5 * 151,2	MIPI	40PIN	IPS, 2000 Nits
7.00	MTF070UG56A-V1	1200 * 1920	98,7 * 160,8 * 2,2	94,5 * 151,2	MIPI	40PIN	IPS, 400 Nits
7.00	MTF070UG77A-V1	1200 * 1920	105,46 * 162,82 * 2,2	94,5 * 151,2	MIPI	40PIN	IPS, 1000 Nits
7.00	MTF070UG80A-V2	1200 * 1920	98,7 * 160,8 * 2,12	94,5 * 151,2	MIPI	40PIN	IPS
7.00	MTF070HD85A-V1	1280 * 720	168,15 * 101,44 * 6,3	154,752 * 87,048	LVDS	40PIN	IPS, Automotive Front-Mount
7.00	MTF070FD96A-V1	1920 * 1080	165,04 * 106,26 * 2,21	154,944 * 87,156	EDP	40PIN	IPS, 500 Nits
7.00	MTF070UG103A-V1	1920 * 1200	160,85 * 98,75 * 8,3	151,2 * 94,5	LVDS	30PIN	IPS, 1000Nits
7.00	MTF070FD104A-V1	1080 * 1080	186,15 * 191,28 * 4,8	177,55 * 177,55	MIPI	30PIN	500Nits, Round
7.00	MTF080TN64	800 * 480	192,8 * 116,9 * 6,4	176,64 * 99,36	RGB	50PIN	*****
8.00	MTF080WV43A-V1	800 * 480	188,5 * 119,3 * 6,8	174 * 104,4	RGB	50PIN	IPS, 300Nits
8.00	MTF080WV45A-V1	800 * 480	187,4 * 118 * 6,3	174 * 104,4	LVDS	40PIN	770Nits, Automotive Front-Mount
8.00	MTF080NA-05B	800 * 600	183,0 * 141,0 * 5,3	162 * 121,5	RGB	50PIN	*****
8.00	MTF080SV20A-V1	800 * 600	183 * 141 * 5,6	162,0 * 121,5	RGB	50PIN	TN, 700Nits
8.00	MTF080SV44A-V1	800 * 600	200 * 152 * 17,47	162 * 121,5	LVDS	20PIN	TN, 1400Nits
8.00	MTF080IA-01D	1024 * 768	171,12 * 132,6 * 2,8	162 * 121,5	LVDS	40PIN	IPS
8.00	MTF080XA23A-V1	1024 * 768	174,0 * 136,0 * 2,5	162,05 * 121,54	LVDS	40PIN	IPS
8.00	MTF080WS28A-V1	1024 * 600	192,8 * 116,9 * 6,4	176,64 * 99,36	LVDS	40PIN	TN, 550Nits
8.00	MTF080WX24A-V1	800 * 1280	114,6 * 184,1 * 2,9	107,64 * 172,22	MIPI	40PIN	IPS
8.00	MTF080WX26A-V1	800 * 1280	114,6 * 184,1 * 2,6	107,64 * 172,22	MIPI	31PIN	IPS
8.00	MTF080WX22A-V1	1280 * 800	181,25 * 118,75 * 3,95	172,22 * 107,64	LVDS	40PIN	IP, 500Nits
8.00	MTF080UG18A-V1	1200 * 1920	114,6 * 184,12 * 2,15	107,64 * 172,22	MIPI	31PIN	IPS
8.00	MTF080UG25A-V1	1200 * 1920	114,58 * 183,09 * 2,05	107,64 * 172,22	MIPI	31PIN	IPS
8.00	MTF080UG31A-V1	1200 * 1920	122,44 * 183,67 * 3,0	107,64 * 172,22	MIPI	39PIN	IPS, 1000Nits
8.00	MTF080UG32A-V1	1200 * 1920	119,8 * 181,7 * 5,5	172,22 * 107,64	LVDS	45PIN	IPS, 1000Nits, Automotive-Grade
8.00	MTF080UG32B-V1	1200 * 1920	119,8 * 181,7 * 5,5	172,22 * 107,64	LVDS	45PIN	IPS, 1500Nits, Automotive-Grade
8.00	MTF080HD35A-V1	1280 * 720	192,40 * 116,50 * 4,5	177,00 * 99,6	LVDS	40PIN	IPS, 550Nits, Automotive-Grade
8.40	MTF084SV04A-V1	800 * 600	199,5 * 149,5 * 12,0	170,4 * 127,8	LVDS	20PIN
8.40	MTF084SV05A-V1	800 * 600	203,0 * 142,5 * 8,0	170,4 * 127,8	LVDS	20PIN	TN, 450Nits
8.40	MTF084SV06A-V1	800 * 600	203,0 * 142,5 * 5,7	170,4 * 127,8	LVDS	20PIN	TN
8.40	MTF084SV07A-V1	800 * 600	203,0 * 142,5 * 5,7	170,4 * 127,8	LVDS	20PIN	TN
8.80	MTF088QW02A-V1	480 * 1920	64,1 * 231,2 * 4,7	54,72 * 218,88	MIPI	40PIN	IPS
8.90	MTF089DL02A-V1	2560 * 1600	197,6 * 129,6 * 2,12	192,0 * 120,0	MIPI	61PIN	IPS, 500Nits
8.90	MTF089WQXGA	2560 * 1600	200,9 * 132,1 * 1,95	192,0 * 120,0	MIPI	61PIN	IPS
8.90	MTF0890195J36EA	2560 * 1600	200,9 * 132,1 * 1,95	192,0 * 120,0	MIPI	51PIN	IPS
9.00	MTF090TN12V.3	800 * 480	211,1 * 126,5 * 5,9	198 * 111,70	RGB	50PIN	*****
9.00	MTF090TN10	800 * 480	211,1 * 126,5 * 5,8	198 * 111,70	RGB	50PIN	***
9.00	MTF090WV17A-V1	800 * 480	210,70 * 126,50 * 5,20	198,0 * 111,69	RGB	50PIN	TN, 1000Nits
9.00	MTF090WV18A-V1	800 * 480	210,70 * 126,40 * 5,50	198,0 * 111,69	TTL	50PIN	TN
9.00	MTF090WV22A-V1	800 * 480	210,7 * 126,4 * 3,5	198,0 * 111,69	RGB	50PIN	TN
9.00	MTF090WS20A-V1	1024 * 600	210,7 * 126,5 * 5,1	196,61 * 114,15	MIPI	30PIN	IPS
9.00	MTF090WS21A-V1	1024 * 600	210,7 * 126,4 * 5,0	196,608 * 114,15	LVDS	60PIN	IPS
9.00	MTF090WS25A-V1	1024 * 600	210,7 * 126,4 * 3,45	196,35 * 113,78	RGB	50PIN	IPS ,430Nits
9.00	MTF090HD15A-V1	1280 * 720	210,2 * 127,5 * 7,9	198,72 * 111,78	LVDS	40PIN	IPS, 400Nits
9.00	MTF090WX16A-V1	1280 * 800	206,8 * 135,1 * 5,5	193,92 * 121,2	LVDS	40PIN	IPS, 480Nits
9.30	MTF093AA01A-V1	320 * 1280	246,15 * 64,48 * 4,5	58,08 * 232,32	MIPI	40PIN	IPS, 550Nits
9.40	MTF094HD01A-V1	320 * 1280	65,52 * 248,08 * 4,4	58,08 * 232,32	MIPI	40PIN	IPS, 600Nits
9.70	MTF097XA03A-V1	1024 * 768	210,30 * 164,40 * 2,80	196,60 * 147,45	LVDS	30PIN	IPS, 400Nits
9.70	MTF097QX06A-V1	2048 * 1536	208,88 * 167,12 * 2,6	196,61 * 147,44	EDP	51PIN	IPS, 440Nits
9.70	MTF097QX07A-V1	1536 * 2048	160,3 * 208,92 * 2,2	147,46 * 196,61	MIPI	60PIN	IPS
10.10	MTF101L06-L0A	1024 * 600	235 * 143 * 5,2	222,72 * 125,28	LVDS	40PIN +R/CTP	*****
10.10	MTF101WS02A-V1	1024 * 600	235 * 143 * 5,1	222,72 * 125,28	TTL	50PIN	***
10.10	MTF101WS08A－V1	1024 * 600	235,00 * 143,00 * 4,5	222,72 * 125,28	LVDS	40PIN	IPS
10.10	MTF101WS21A-V1	1024 * 600	257,80 * 148,0 * 10,10	225,4 * 127,9	MCU	34PIN	TN
10.10	MTF101WS23A-V1	1024 * 600	233,50 * 137,50 * 3,50	222,72 * 125,28	TTL	50PIN	TN
10.10	MTF101WS24A-V1	1024 * 600	233,50 * 137,50 * 3,60	222,72 * 125,28	TTL	50PIN	TN
10.10	MTF101WS28A-V1	1024 * 600	244,0 * 143,0 * 12,4	222,72 * 125,28	LVDS	20PIN	TN, 2000Nits
10.10	MTF101WS29A-V1	1024 * 600	235,0 * 143,0 * 5,0	222,72 * 125,28	LVDS	50PIN	IPS, 800Nits
10.10	MTF101WS30A-V1	1024 * 600	233,5 * 137,5 * 3,6	222,72 * 125,28	TTL	50PIN	TN, 2000Nits
10.10	MTF101WS32A-V1	1024 * 600	235,0 * 143,0 * 5,0	222,72 * 125,28	RGB-24bit	50PIN	IPS, 400Nits
10.10	MTF101WS34A-V1	1024 * 600	235,0 * 143,0 * 5,0	222,72 * 125,28	RGB-24bit	50PIN
10.10	MTF101WS42A-V1	1024 * 600	235,0 * 143,0 * 5,0	222,72 * 125,28	RGB-24bit	50PIN	IPS
10.10	MTF101WS53A-V1	1024 * 600	235 * 143 * 5,0	222,72 * 125,28	LVDS	40PIN	IPS, 1000Nits
10.10	MTF101WS55A-V1	1024 * 600	235 * 143 * 5,0	222,72 * 125,28	LVDS	40PIN	TN, 350Nits
10.10	MTF101WS56A-V1	1024 * 600	235 * 143 * 5,0	222,72 * 125,28	LVDS	40PIN	IPS, 350Nits
10.10	MTF101WS58B-V1	1024 * 600	235 * 143 * 4,5	222,72 * 125,28	LVDS	40PIN	IPS, 1000Nits
10.10	MTF101WS69A-V1	1024 * 600	235 * 143 * 5,0	222,72 * 125,28	LVDS	40PIN	IPS, 2000Nits
10.10	MTF101WS90A-V1	1024 * 600	253,0 * 143,0 * 4,5	222,72 * 125,28	LVDS	60PIN	TN, 380Nits
10.10	MTF101IA-01D-V3	1280 * 800	229,2 * 149,8 * 2,50	216,96 * 135,6	LVDS	40PIN	350/600Nits
10.10	MTF101WX04A-V1	1280 * 800	229,46 * 149,1 * 2,5	216,46 * 135,60	LVDS	40PIN	IPS
10.10	MTF101WX07A-V1	1280 * 800	229,51 * 149,15 * 4,8	216,96 * 135,6	LVDS	40PIN	IPS
10.10	MTF101WX08A-V1	1280 * 800	229,46 * 149,1 * 2,5	216,96 * 135,6	LVDS	40PIN	IPS
10.10	MTF101WX15A-V1	1280 * 800	229,17 * 149,06 * 2,8	216,96 * 135,6	LVDS	45PIN	IPS, 330Nits
10.10	MTF101WX27A-V1	1280 * 800	229,17 * 149,06 * 2,8	216,96 * 135,6	LVDS	45PIN	IPS, 380Nits
10.10	MTF101WX33A-V1	1280 * 800	228,3 * 149,05 * 2,4	216,96 * 135,6	EDP	30PIN	IPS
10.10	MTF101WX35A-V1	1280 * 800	229,46 * 149,1 * 4,56	216,96 * 135,60	LVDS	40PIN	IPS
10.10	MTF101WX44A-V1	1280 * 800	223,2 * 152,9 * 6,7	216,96 * 135,6	LVDS	20PIN	IPS, Military Grade
10.10	MTF101WX60A-V1	1280 * 800	228,6 * 149,2 * 3,0	216,96 * 135,60	LVDS	40PIN	IPS
10.10	MTF101WX63A-V1	1280 * 800	228,3 * 149,05 * 4,9	216,96 * 135,60	LVDS	40PIN	IPS
10.10	MTF101WX64A-V1	1280 * 800	229,46 * 149,1 * 2,5	216,96 * 135,60	LVDS	40PIN	IPS
10.10	MTF101WX67A-V1	1280 * 800	228,91 * 148,57 * 4,95	216,96 * 135,6	LVDS	40PIN	IPS
10.10	MTF101WX72A-V1	1280 * 800	229,46 * 149,1 * 2,8	216,96 * 135,60	LVDS	40PIN	IPS
10.10	MTF101WX80A-V1	1280 * 800	229,46 * 149,1 * 5,88	216,96 * 135,60	MIPI	40PIN	IPS
10.10	MTF101WX84A-V1	1280 * 800	228,91 * 148,57 * 2,65	216,96 * 135,60	LVDS	40PIN	IPS
10.10	MTF101WX20A-V1	800 * 1280	143,0 * 228,6 * 2,6	135,36 * 216,576	MIPI	31PIN	IPS
10.10	MTF101WX25A-V3	800 * 1280	143,0 * 228,6 * 2,6	135,36 * 216,576	MIPI	40PIN	IPS
10.10	MTF101WX25A-V5	800 * 1280	143,0 * 228,6 * 2,6	135,36 * 216,576	MIPI	40PIN	IPS, 700Nits
10.10	MTF101WX31A-V1	800 * 1280	143,1 * 228,55 * 2,5	135,36 * 216,58	LVDS	20PIN	IPS
10.10	MTF101WX71A-V2	800 * 1280	143,1 * 228,7 * 2,65	135,36 * 216,576	LVDS	40PIN	IPS
10.10	MTF101UG20A-V1	1200 * 1920	228,60 * 143,0 * 2,30	135,36 * 216,576	MIPI	40PIN	IPS
10.10	MTF101UG21A-V1	1200 * 1920	162,10 * 237,14 * 4,40	135,36 * 216,576	MIPI	45PIN	IPS
10.10	MTF101UG73A-V2	1200 * 1920	143,0 * 228,6 * 2,6	135,36 * 216,58	MIPI	40PIN	IPS
10.10	MTF101UG73A-V3	1200 * 1920	143,0 * 228,6 * 2,6	135,36 * 216,58	MIPI	40PIN	IPS, 1000Nits
10.10	MTF101UG17A-V1	1920 * 1200	229,40 * 149,04 * 4,7	216,80 * 135,50	LVDS	45PIN	IPS, 1000Nits
10.10	MTF101UG18A-V1	1920 * 1200	229,40 * 149,04 * 4,7	216,80 * 135,50	LVDS	45PIN	IPS, 350Nits
10.10	MTF101UG19A-V1	1920 * 1200	229,40 * 149,04 * 4,7	216,80 * 135,50	LVDS	45PIN	IPS, 600Nits
10.10	MTF101UG26A-V1	1920 * 1200	228,22 * 148,32 * 5,35	216,81 * 135,5	EDP	30PIN	IPS, 380Nits
10.10	MTF101UG43A-V1	1920 * 1200	229,46 * 149,35 * 4,6	217,65 * 136,0	LVDS	60PIN	IPS, 660Nits
10.10	MTF101UG49A-V3	1920 * 1200	229,46 * 149,35 * 4,6	217,65 * 136,0	LVDS	60PIN	IPS, 1000Nits
10.10	MTF101FD78B-V1	1920 * 1080	229,91 * 135,74 * 2,8	223,49 * 125,71	LVDS	40PIN	IPS, 900Nits
10.10	MTF101WB03	1366 * 768	249 * 147 * 3,6	222,72 * 125,28	LVDS	40PIN	***
10.10	MTF101R1SX01A	2560 * 1600	228,0 * 148,5 * 1,875	216,576 * 135,36	MIPI	50PIN
10.10	MTF101DL09A-V1	1600 * 2560	142,96 * 228,04 * 2,05	135,36 * 216,5	MIPI	61PIN	IPS
10.11	MTF1011FD01A-V1	440 * 1920	266,39 * 64,98 * 4,6	252,69 * 57,9	MIPI	40PIN	IPS, 550Nits
10.20	MTF102TN03 V.9	800 * 480	235,00 * 145,8 * 6,1	222,0 * 132,48	LVDS	60PIN
10.30	MTF103HD02A-V1	1920 * 720	255,65 * 105,88 * 7,5	243,648 * 91,368	LVDS	60PIN	IPS
10.36	MTF104AA21A-V1	1200 * 2000	153,22 * 243,46 * 2,6	135,36 * 225,6	MIPI	45PIN	INCELL
10.40	MTF104SN02	800 * 600	236,00 * 174,4 * 5,6	211,2 * 158,4	LVDS	42PIN
10.40	MTF104LSA40AT9001-V3	800 * 600	228,4 * 175,4 * 5,0	211,2 * 158,4	TTL	60PIN	TN
10.40	MTF104SV13A-V1	800 * 600	228,4 * 175,4 * 5,5	211,20 * 158,40	RGB	60PIN	TN
10.40	MTF104SV14A-V1	800 * 600	236 * 176,9 * 5,6	211,20 * 158,40	LVDS	20PIN	TN
10.40	MTF104SV22A-V1	800 * 600	228,5 * 175,5 * 6,0	211,20 * 158,40	RGB	60PIN	TN
10.40	MTF104XA02A-V1	1024 * 768	236 * 174,3 * 10,06	211,2 * 158,4	LVDS	20PIN
10.40	MTF104XA15A-V1	1024 * 768	228,4 * 175,4 * 5,9	210,4 * 157,8	LVDS	30PIN	IPS, 450Nits
10.40	MTF104XA17A-V1	1024 * 768	230,0 * 180,2 * 9,5	210,432 * 157,824	LVDS	20PIN	IPS, 1200Nits
11.60	MTF116FD06A-V1	1920 * 1080	267,90 * 157,22 * 2,60	256,32 * 144,18	EDP	30PIN	IPS
11.60	MTF116FD09A-V1	1920 * 1080	273,50 * 166,50 * 7,80	256,32 * 144,18	LVDS	30PIN	IPS, 1400Nits
11.60	MTF116FD11A-V1	1920 * 1080	267,9 * 157,2 * 2,8	256,32 * 144,18	EDP	30PIN	IPS
11.60	MTF116FD12A-V1	1920 * 1080	267,72 * 164,42 * 6,1	256,32 * 144,18	EDP	30PIN	IPS,1000Nits
11.60	MTF116FD17A-V1	1920 * 1080	256,32 * 144,18 * 2,6	256,32 * 144,18	EDP	30PIN	IPS, NTSC
11.60	MTF116FD18A-V1	1920 * 1080	263,6 * 157,42 * 2,6	256,32 * 144,18	EDP	30PIN	IPS
11.60	MTF116FD19A-V1	1920 * 1080	263,4 * 157,22 * 2,55	256,32 * 144,18	EDP	30PIN	IPS
11.60	MTF116FD20A-V1	1920 * 1080	263,4 * 157,22 * 2,55	256,32 * 144,18	EDP	30PIN	IPS
11.60	MTF116WF05A-V1	1366 * 768	270,73 * 159,87 * 2,65	256,125 * 144,0	EDP	30PIN	IPS
11.60	MTF116WF15A-V1	1366 * 768	267,9 * 157,2 * 2,8	256,13 * 144	EDP	30PIN	IPS
11.60	MTF116FD21A-V1	1920 * 1080	267,72 * 164,42 * 5,75	256,13 * 144,18	EDP	30PIN	IPS, 1000Nits
11.60	MTF116WF22A-V1	1366 * 768	268,0 * 168,0 * 3,2	256,13 * 144	EDP	40PIN	TN
11.60	MTF116WF24A-V1	1366 * 768	268,0 * 158,0 * 3,0	256,13 * 144	EDP	30PIN	TN
11.60	MTF116QD29A-V1	3840 * 2160	265,9 * 158,2 * 3,0	256,9 * 144,5	EDP	40PIN	IPS
11.60	MTF116WF32A-V1	1366 * 768	278 * 168,5 * 3,6	256,13 * 144	LVDS	40PIN	IPS
12.10	MTF121SV05A-V1	800 * 600	276,0 * 209,0 * 9,1	246 * 184,5	LVDS	20PIN	TN
12.10	MTF121XA09A-V1	1024 * 768	260,5 * 204,0 * 6,95	245,76 * 184,32	LVDS	20PIN	IPS
12.10	MTF121I1-L01	1280 * 800	278 * 184 * 8,16	261,12 * 163,20	LVDS	30PIN
12.10	MTF121TD02	1280 * 800	283,0 * 185,1 * 9,7	261,12 * 163,20	LVDS		450Nits
12.10	MTF121ETN-N10	1280 * 800	283,0 * 185,1 * 9,7	261,12 * 163,20	LVDS	20PIN	1000Nits
12.10	MTF121WX04A-V1	1280 * 800	277,7 * 180,6 * 8,7	261,12 * 163,20	LVDS	20PIN	IPS, 500Nits
12.10	MTF121WX06A-V1	1280 * 800	278,0 * 184,0 * 10	261,12 * 163,20	LVDS	30PIN	IPS, 1000Nits
12.10	MTF121WX07A-V1	1280 * 800	276,7 * 184,7 * 8,8,	261,12 * 163,20	LVDS	19PIN	TN, 1000Nits
12.10	MTF121WX08A-V1	1280 * 800	278,0 * 184,0 * 8,6	261,12 * 163,20	LVDS	20PIN	500Nits
12.10	MTF121WX11A-V1	1280 * 800	283,0 * 185,1 * 7,15	261,12 * 163,20	LVDS	40PIN	IPS, 1000Nits
12.10	MTF121WX13A-V1	1280 * 800	277,7 * 180,6 * 7,5	261,12 * 163,20	LVDS	40PIN	IPS, 500Nits
12.20	MTF122WU03A-V1	1440 * 2160	190,04 * 276,0 * 2,67	171,94 * 257,90	MIPI	61PIN
12.30	MTF123VF04A-V1	1920 * 720	310,0 * 128,0 * 6,8	292,032 * 109,512	LVDS	60PIN	IPS, 1000Nits
12.50	MTF125FD01A-V1	1920 * 1200	282,4 * 179,32 * 2,3	276,48 * 155,52	EDP	39PIN
12.50	MTF125FD04A-V1	1920 * 1080	291,0 * 171,2 * 4,8	276,48 * 155,52	EDP	30PIN
12.90	MTF129IA0T	1200 * 1600	206,3 * 276,28 * 3,0	196,59 * 262,13	MIPI	39PIN
13.30	MTF133FD05A-V4.1	1920 * 1080	305,1 * 188,2 * 2,5	293,76 * 165,24	EDP	30PIN	IPS
13.30	MTF133FD09A-V1	1920 * 1080	305,1 * 178,0 * 2,8	293,76 * 165,24	EDP	30PIN	IPS
13.30	MTF133FD16A-V1	1920 * 1080	307,6 * 183,05 * 5,5	293,76 * 165,24	EDP	30PIN	IPS, 1000Nits
13.30	MTF133FD17A-V1	1920 * 1080	301,0 * 177,9 * 2,2	293,76 * 165,24	EDP	30PIN	IPS
13.30	MTF133FD18A-V1	1920 * 1080	307,8 * 183,25 * 5,5	293,76 * 165,24	EDP	30PIN	IPS, 1000Nits
13.30	MTF133FD19A-V1	1920 * 1080	305,35 * 193,45 * 2,88	293,76 * 165,24	EDP	30PIN	IPS
13.30	MTF133FD20A-V1	1920 * 1080	305,2 * 178,1 * 2,7	293,76 * 165,24	EDP	30PIN	IPS
13.30	MTF133FD22A-V1	1920 * 1080	299,96 * 177,09 * 3,8	293,76 * 165,24	EDP	30PIN	IPS
13.30	MTF133FD23A-V1	1920 * 1080	298,76 * 181,33 * 2,24	293,76 * 165,24	EDP	30PIN	IPS, 400 Nits
13.30	MTF133FD25A-V1	1920 * 1080	299,46 * 177,64 * 2,6	293,76 * 165,24	LVDS	51PIN	IPS
13.30	MTF133FD29A-V1	1920 * 1080	307,6 * 183,05 * 7,28	293,76 * 165,24	EDP	30PIN	IPS, 1000Nits
13.30	MTF133FD36A-V1	1920 * 1080	300,01 * 177,33 * 2,6	293,76 * 165,24	EDP	30PIN	IPS, 500Nits
13.30	MTF133WX2	1280 * 800	297,15 * 192,15 * 3,3	286,08 * 178,80	LVDS	30PIN
13.30	MTF133XW03 V1	1366 * 768	314,1 * 177,7 * 3,6	293,42 * 164,97	LVDS	40PIN
13.30	MTF133WF15A-V1	1366 * 768	305,1 * 189,0 * 2,8	293,42 * 164,97	EDP	40PIN	TN
13.30	MTF133WQ11A-V1	2560 * 1600	304,98 * 187,9 * 2,4	293,76 * 165,24	EDP	45PIN	IPS
13.30	MTF133WQ12A-V1	2560 * 1600	306,30 * 178,50	293,76 * 165,24	EDP	45PIN	IPS
13.30	MTF133WB21A-V1	3200 * 1800	299,4 * 176,36 * 2,45	293,76 * 165,24	EDP	40PIN	IPS, 4K
13.70	MTF137AA01A-V1	1920 * 248	389,0 * 65,0 * 16,0	344,2 * 44,4	LVDS	40PIN	IPS, Cutting LCD
13.90	MTF139WF01A-V1	1366 * 768	316,76 * 186,0 * 2,9	307,76 * 173,03	LVDS	40PIN	IPS
14.00	MTF140WF06A-V1	1366 * 768	323,50 * 192,00 * 5,20	309,4 * 173,95	LVDS	40PIN	TN
14.00	MTF140FD09A-V1	1920 * 1080	315,85 * 197,35 * 2,85	309,31 * 173,99	EDP	30PIN	IPS
14.00	MTF140QD17A-V1	3840 * 2160	315,01 * 186,14 * 2,2	309,11 * 173,79	LVDS	40PIN	IPS
15.00	MTF150XG1-TB	1024 * 768	326,5 * 253,5 * 11,13	304,12 * 228,1	LVDS	20PIN
15.00	MTF150XVN01.0	1024 * 768	326,5 * 253,5 * 9,6	304,12 * 228,1	LVDS	30PIN
15.00	MTF150XA05A-V1	1024 * 768	326,5 * 253,5 * 9,1	304,1 * 228,1	LVDS	20PIN	IPS
15.00	MTF150FD06A-V1	1920 * 1080	338,6 * 210,41 * 2,5	322,06 * 186,79	EDP	30PIN	IPS
15.00	MTF150FD09A-V1	1920 * 1080	339,26 * 213,1 * 2,8	332,06 * 186,79	EDP	30PIN	IPS
15.40	MTF154EW02 V.6	1366 * 800	323,5 * 192 * 3,6	309,4 * 173,95	LVDS	30PIN
15.60	MTF156WHM-N42	1366 * 768	359,5 * 223,8 * 3,2	344,23 * 193,54	EDP	30PIN	TN
15.60	MTF156WF35A-V1	1366 * 768	359,5 * 223,8 * 3,8	344,23 * 193,54	LVDS	30PIN	TN
15.60	MTF156EA0S	1920 * 1080	359,50 * 223,80 * 3,4	344,16 * 193,59	EDP	30PIN
15.60	MTF156FD01A-V1	1920 * 1080	363,8 * 215,9 * 8,8	344,16 * 193,,59	EDP	30PIN
15.60	MTF156FD02A-V2	1920 * 1080	359,5 * 223,8 * 3,2	344,16 * 193,59	EDP	30PIN	300Nits
15.60	MTF156HAN02.0	1920 * 1080	363,8 * 215,9 * 8,8	344,16 * 193,59	EDP	30PIN	1000Nits
15.60	MTF156FD03A-V1	1920 * 1080	360,00 * 212,30 * 6,40	344,16 * 193,59	EDP	30PIN	1000Nits
15.60	MTF156FD04A-V1	1920 * 1080	370,00 * 217,00 * 9,30	344,16 * 193,59	LVDS	30PIN	TN
15.60	MTF156FD05A-V1	1920 * 1080	360,0 * 212,30 * 6,40	344,16 * 193,59	EDP	30PIN	IPS, 1000Nits
15.60	MTF156FD09A-V1	1920 * 1080	360,0 * 222,4 * 6,40	344,16 * 193,59	EDP	30PIN	IPS, 1000Nits
15.60	MTF156FD10A-V1	1920 * 1080	360,0 * 221,95 * 5,7	344,16 * 193,59	EDP	30PIN	IPS/ 1000Nits
15.60	MTF156FD11A-V1	1920 * 1080	350,7 * 215,9 * 2,8	344,16 * 193,59	EDP	30PIN	IPS
15.60	MTF156FD14A-V1	1920 * 1080	350,66 * 205,24 * 5,8	344,16 * 193,59	EDP	30PIN	IPS
15.60	MTF156FD15A-V1	1920 * 1080	363,8 * 215,9 * 8,8	344,16 * 193,59	LVDS	30PIN	IPS
15.60	MTF156FD17A-V1	1920 * 1080	359,5 * 206,5 * 3,2	344,16 * 193,59	LVDS	30PIN	IPS
15.60	MTF156FD21A-V1	1920 * 1080	360,0 * 212,3 * 5,7	344,16 * 193,29	EDP	30PIN	IPS/ 1000Nits
15.60	MTF156FD22A-V1	1920 * 1080	351,86 * 206,33 * 3,2	344,16 * 193,59	LVDS	40PIN	IPS
15.60	MTF156FD33A-V1	1920 * 1080	363,8 * 215,9 * 9,3	344,16 * 193,59	LVDS	40PIN	IPS
15.60	MTF156FD38A-V1	1920 * 1080	350,62 * 214,19 * 2,8	344,16 * 193,59	EDP	30PIN	IPS, 250Nits /Automotive Front-Mount
15.60	MTF156QD26A-V1	3840 * 2160	350,66 * 205,37 * 2,6	344,22 * 193,62	EDP	40PIN	IPS, 4K
15.60	MTF156WQ28A-V1	2560 * 1440	350,66 * 216,14 * 3,2	344,21 * 193,62	EDP	40PIN	IPS

LCD

Die LCD-Module von Microtech stehen für klare Darstellung, lange Lebensdauer und lange Verfügbarkeit in industriellen Anwendungen. Ob alphanumerisch, grafisch oder kundenspezifisch, sie sind in verschiedenen Größen, Spannungen und Schnittstellen erhältlich. AMC HighTech Components unterstützt Sie als Distributor bei Auswahl, Anpassung und Serienlieferung der optimalen Microtech-LCDs für Ihr Projekt.

Übersicht Microtech LCD

Resolution	Part No.	Controller	Outline Dimension	View Area	Active Area	Interface	Remark
32 x 32	MTC2054FA	ST7567-COG	19,5 x 20,0	17,5 x 14,0	15,97 x 12,77	S	0,6pitch,28pin
64 x 48	MTC1002FAN	SPLC502B-COG	16,0 x 17,2	13,18 x 9,52	11,18 x 8,38	P,6800/8080	0,8pitch,28PIN,NEGATIVE
64 x 48	MTC1002FB	SPLC502B-COG	16,0 x 17,0	13,18 x 9,52	11,18 x 8,38	P	0,6pitch,28pin
64 x 48	MTC2052FA	SPLC502B-COG	24,2 x 21,0	22,2 x 15,8	19,18 x 13,18	P	0,5pitch,20pin
64 x 64	MTC4019FA	ST7565R-COG	41,0 x 48,0	38,0 x 38,0	30,06 x 30,06	S	0,5pitch,20pin
64 x 128	MTC2055FA	UC1604-COG	20,8 x 39,7	18,8 x 31,7	12,52 x 27,244	P/S,6800/8080	0,5pitch,24pin
72 x 40	MTC2056FA	ST7567-COG	24,0 x 18,8	20,0 x 10,8	15,82 x 8,78	S	0,5pitch,12pin
80 x 8	MTC6008FA	ST7032I-COG	66,2 x 19,6	62,20 x 9,1	59,62 x 6,56	S	2,54pitch,6PIN
80 x 64	MTC2049FA	ST7579-COG	20,6 x 23,4	18,6 x 17,4	15,98 x 14,76	P	0,7pitch,19PIN
80 x 64	MTC2049FAN	ST7579-COG	20,6 x 23,4	18,6 x 17,4	15,98 x 14,76	P	0,7pitch,19PIN,Negative
80 x 64	MTC2049FC	ST7579-COG	20,6 x 23,4	18,6 x 17,4	15,98 x 14,76	P	0,7pitch,19PIN
96 x 16	MTC3052FA	ST7549-COG	29,2 x 10,8	21,2 x 7,8	19,18 x 3,82	I2C	0,5pitch,6PIN
96 x 16	MTC3052FB	ST7549-COG	29,2 x 10,8	21,2 x 7,8	19,18 x 3,82	I2C	0,5pitch,6PIN
96 x 16	MTC3052FC	ST7549-COG	29,2 x 10,8	21,2 x 7,8	19,18 x 3,82	I2C	0,55pitch,8PIN
96 x 24	MTC2057FA	ST7567-COG	23,5 x 11,5	21,5 x 6,0	21,5 x 6,0	S	0,5pitch,10PIN
96 x 24	MTC2057FB	ST7567-COG	23,5 x 11,5	21,5 x 6,0	21,5 x 6,0	S	0,5pitch,10PIN
96 x 26	MTC3004FB	ST7549-COG	32,9 x 17,0	30,0 x 10,0	23,97 x 6,47	S	0,5pitch, 8PIN, ICON
96 x 26	MTC3004FC	ST7549-COG	32,9 x 17,0	30,0 x 10,0	23,97 x 6,47	S	0,8pitch, 8PIN, ICON
96 x 26	MTC3004FD	ST7549-COG	32,9 x 17,0	30,0 x 10,0	23,97 x 6,47	S	0,8pitch, 8PIN, ICON
96 x 26	MTC3004FE	ST7549-COG	32,9 x 17,0	30,0 x 10,0	23,97 x 6,47	S	0,8pitch, 8PIN, ICON
101 x 64	MTC3078FA	ST7567-COG	36,0 x 34,6	33,0 x 24,6	28,25 x 19,36	S	0,5pitch, 26PIN
101 x 80	MTC3044FA	UC1612-COG	34,9 x 34,7	31,5 x 24,6	27,245 x 21,575	S	0,8pitch,18PIN
101 x 80	MTC3044FAN	UC1612-COG	34,9 x 34,7	31,5 x 24,6	27,245 x 21,575	S	0,8pitch,18PIN
128 x 32	MTC2042FA	TL8201-COG	27,8 x 15,5	25,8 x 12,0	24,807 x 8,999	S	0,8pitch,18pin
128 x 32	MTC2051FA	TL8201-COG	26,0 x 14,0	23,0 x 8,5	21,996 x 7,50	S	0,8pitch,18pin
128 x 32	MTC3030FA	ST7565R	35,0 x 16,4	32,0 x 11,9	29,66 x 8,45	S	0,8pitch,18pin
128 x 32	MTC3059FA	TLS8201	35,0 x 16,4	32,0 x 10,0	29,66 x 8,45	S	0,8pitch,18pin
128 x 32	MTC3059FB	ST7567	35,0 x 16,4	32,0 x 10,0	29,66 x 8,45	S	0,8pitch,20pin
128 x 32	MTC3059FC	ST7567	36,6 x 17,6	32,0 x 10,0	29,67 x 8,45	S	0,8pitch,20pin
128 x 32	MTC3059FE	ST7567	36,6 x 17,6	32,0 x 10,0	29,67 x 8,45	S	0,8pitch,20pin
128 x 32	MTC3075FA	TLS8201-COG	33,0 x 14,0	30 x 8,5	28,652 x 7,5	S	0,8pitch,18pin
128 x 32	MTC3076FA	ST7567-COG	33,0 x 14,0	30 x 8,5	28,652 x 7,5	S	0,8pitch,18pin
128 x 32	MTC4589FD	ST7565S-COG	35,0 x 18,0	32 x 10	29,031 x 8,295	P/S	0,5pitch,28PIN
128 x 32	MTC4589FE	ST7565S-COG	35,0 x 18,0	32 x 10	29,031 x 8,295	P, 6800/8080	0,8pitch,28PIN
128 x 32	MTC4589FF	ST7565S-COG	35,0 x 18,0	32 x 10	29,031 x 8,295	P, 6800/8080	0,6pitch,28PIN
128 x 32	MTC4589FH	ST7565S-COG	35,0 x 18,0	32 x 10	29,031 x 8,295	P/S	0,7pitch,28PIN
128 x 32	MTC4589FI	ST7565S-COG	35,0 x 18,0	32 x 10	29,031 x 8,295	P, 6800/8080	0,5pitch,28PIN
128 x 32	MTC4589FI	ST7565R-COG	35,0 x 18,0	32 x 10	29,031 x 8,295	P/S	0,5pitch,28PIN
128 x 32	MTC4589FK	ST7565S-COG	35,0 x 18,0	32 x 10	29,031 x 8,295	P, 6800/8080	0,5pitch,28PIN
128 x 32	MTC4589FM	ST7565S-COG	35,0 x 18,0	32 x 10	29,031 x 8,295	P, 6800/8080	0,5pitch,28PIN
128 x 32	MTC4018FA	ST7565R-COG	42,3 x 25,0	34 x 10	28,0 x 8,0	P/S	0,5pitch,30PIN
128 x 32	MTC5004FA	ST7565P-COG	53,0 x 25,5	50,5 x 17	47,33 x 13,73	P	0,5pitch,18pin

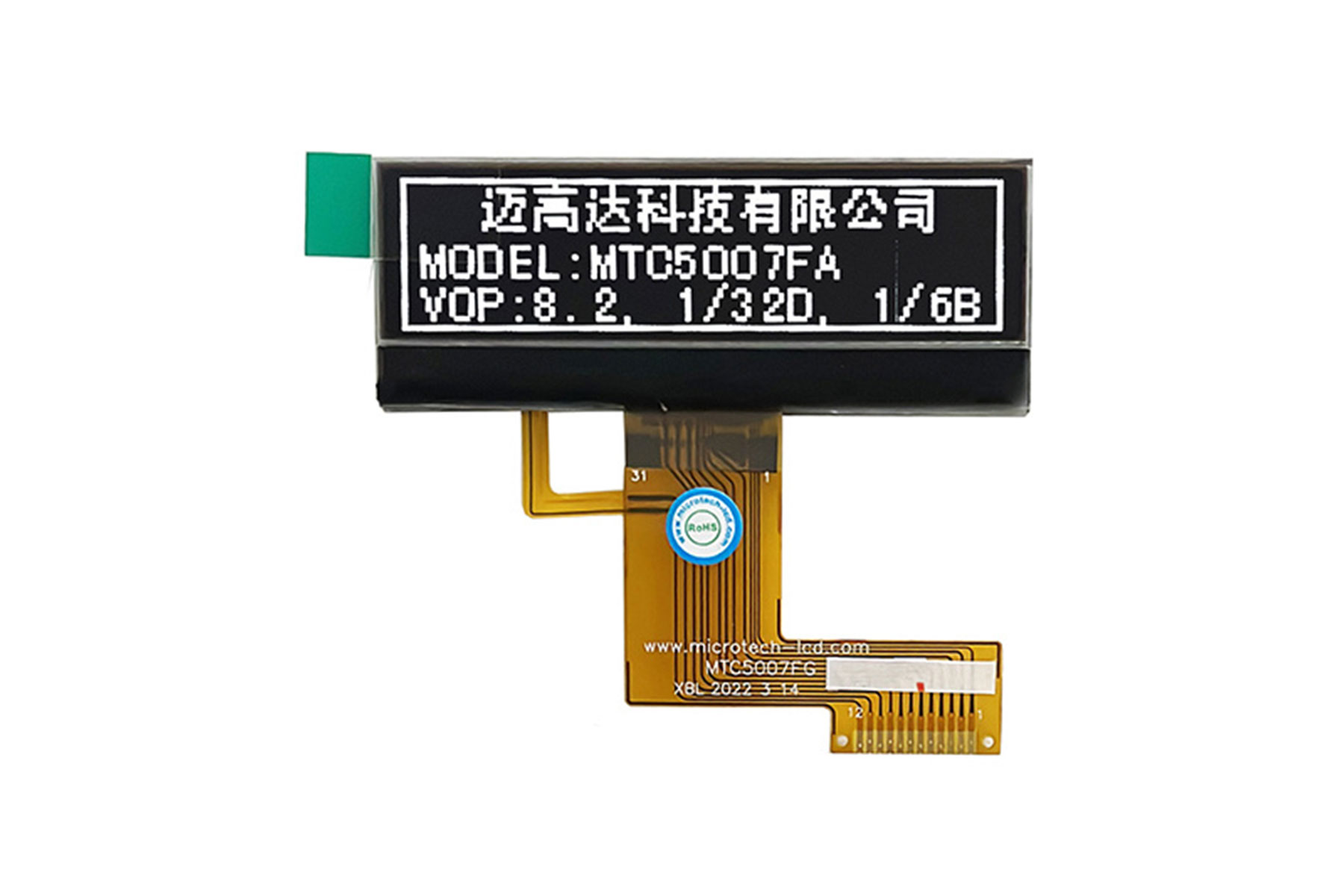

128 x 32	MTC5007FB	ST7567-COG	51,0 x 14,5	49 x 12,5	46,06 x 11,8	S	0,8pitch,12pin
128 x 32	MTC5007FC	ST7567-COG	51,0 x 14,5	49 x 12,5	46,06 x 11,8	S	0,8pitch,12pin
128 x 32	MTC5007FD	ST7567-COG	51,0 x 19,0	49 x 12,5	46,06 x 11,8	S	0,8pitch,12pin
128 x 32	MTC5007FF	AIP31567-COG	51,0 x 19,0	49 x 12,5	46,06 x 11,8	S	0,8pitch,12pin
128 x 32	MTC5007FG	AIP31567-COG	51,0 x 19,0	49 x 12,5	46,06 x 11,8	S	0,8pitch,12pin,DFSTN
128 x 32	MTC8001FA	ST7565P-COG	81,2 x 33,4	77,2 x 23,43	74,19 x 20,43	P,6800/8080	0,8pitch,28pin
128 x 64	MTC2014FB	ST7565R-COG	28,6 x 20,1	26,15 x 13,9	23,02 x 8,62	P	0,7pitch,28PIN,JOLED
128 x 64	MTC2014FC	ST7565R-COG	28,6 x 20,1	26,15 x 13,9	23,02 x 8,62	S	0,8pitch,18PIN,JOLED
128 x 64	MTC2014FD	SPLC502B-COG	28,6 x 20,1	26,15 x 13,90	23,02 x 11,5	P	0,7pitch,28pin ,POSITIVE
128 x 64	MTC2044FA	ST7565R-COG	25,0 x 25,0	23 x 19	20,46 x 14,06	P,6800/8080	0,5pitch,28pin
128 x 64	MTC2044FB	ST7565R-COG	25,0 x 25,0	23 x 19	20,46 x 14,06	P,6800/8080	0,8pitch,28pin
128 x 64	MTC2047FA	ST7565R-COG	32,8 x 32,2	/	23,66 x 15,34	P	0,5pitch,28pin
128 x 64	MTC2050FA	ST7565R-COG	25,2 x 20,0	23,5 x 14,00	20,46 x 11,48	p	0,7pitch,28PIN,JO
128 x 64	MTC2053FA	ST7567-COG	29,0 x 18,0	26,6 x 11,1	23,66 x 9,56	S	0,7pitch,21pin
128 x 64	MTC2055FA	UC1604CA-COG	,,,	31,7 x 18,8	27,24 x 12,524	P,6800/8080	0,5pitch,24PIN
128 x 64	MTC2058FA-V1	ST7567S-COG	29 x 27 x 3,65	27 x 19,4	25,98 x 17,98	S	0,5pitch,12PIN
128 x 64	MTC3020B	ST7565S-COG	32,0 x 19,1	28,0 x 13,34	23,916 x 10,86	P,6800/8080	0,7pitch,30PIN
128 x 64	MTC3020FB	ST7565S-COG	32,0 x 19,1	28,0 x 13,34	23,916 x 10,86	P,6800/8080	0,5pitch,30PIN
128 x 64	MTC3022FA	ST7565P-COG	33,9 x 32,5	30,9 x 23,0	27,37 x 19,18	P/S,6800/8080	0,8pitch,28PIN
128 x 64	MTC3022FB	ST7565P-COG	33,9 x 32,5	30,9 x 23,0	27,37 x 19,18	P/S,6800/8080	0,8pitch,28PIN
128 x 64	MTC3022FC	ST7567-COG	33,9 x 32,5	30,9 x 23,0	27,37 x 19,18	S	0,8pitch,21PIN
128 x 64	MTC3022FCV5.0	AIP31567-COG	37,0 x 32,5	30,9 x 23,0	27,37 x 19,18	S	0,8pitch,21PIN
128 x 64	MTC3022FD	ST7565P-COG	33,9 x 32,5	30,9 x 23,0	27,37 x 19,18	S	0,8pitch,21PIN
128 x 64	MTC3022FI	ST7567-COG	33,9 x 32,5	30,9 x 23,0	27,37 x 19,18	S	0,8pitch,21PIN
128 x 64	MTC3022FI-V1	AIP31567-COG	33,9 x 32,5	30,9 x 23,0	27,37 x 19,18	S	0,5pitch,12PIN
128 x 64	MTC3022FK	ST7565P-COG	33,9 x 32,5	30,9 x 23,0	27,37 x 19,18	S	0,5pitch,21PIN
128 x 64	MTC3022FL	ST7565P-COG	33,9 x 32,5	30,9 x 23,0	27,37 x 19,18	S	0,8pitch,21PIN
128 x 64	MTC3022FG	ST7565P-COG	33,9 x 32,5	30,9 x 23,0	27,37 x 19,18	P/S,6800/8080	0,8pitch,21PIN
128 x 64	MTC3022FM	ST7565R-COG	33,9 x 32,5	30,9 x 23,0	27,37 x 19,18	S	0,8pitch,21PIN
128 x 64	MTC3029FA	ST7565R-COG	34,0 x 27,0	32 x 20	28,903 x 17,383	P,6800/8080	0,8pitch,28PIN
128 x 64	MTC3037FB	ST7565R-COG	31,0 x 27,0	28,0 x 18,0	25,96 x 15,02	S	0,8pitch,21PIN
128 x 64	MTC3037FC	ST7565R-COG	31,0 x 27,0	28,0 x 18,0	25,96 x 15,02	S	0,8pitch,21PIN
128 x 64	MTC3042FA(V2.0)	ST7567R	36,6 x 28,0	34,6 x 22,5	30,95 x 18,47	S	0,8pitch,20pin
128 x 64	MTC3042FB	ST7567R	36,6 x 28,0	34,6 x 22,5	30,95 x 18,47	S	0,5pitch,18pin
128 x 64	MTC3042FB-V1	Aip31565CR	36,6 x 28,0	34,6 x 22,5	30,95 x 18,47	S	0,5pitch,18pin
128 x 64	MTC3042FC	ST7567R	36,6 x 28,0	34,6 x 22,5	30,95 x 18,47	S	0,8pitch,20pin
128 x 64	MTC3042FD	ST7567R	36,6 x 28,0	34,6 x 22,5	30,95 x 18,47	S	0,8pitch,21pin
128 x 64	MTC3050FA	ST7565R-COG	32,0 x 19,1	28,0 x 14,1	23,916 x 10,86	P,6800/8080	0,7pitch,30PIN
128 x 64	MTC3051FA	ST7565R-COG	33,0 x 23,0	30,4 x 15,4	26,86 x 12,0	P,6800/8080	0,8pitch,28pin
128 x 64	MTC3058	TLS8201	36,6 x 28,0	34,6 x 22,5	30,95 x 18,47	S	0,8pitch,21pin
128 x 64	MTC3062FA	ST7565R/TLS8201	33,0 x 21,0	29,0 x 13,5	26,86 x 12,0	S	0,8pitch,18PIN
128 x 64	MTC3062FB	ST7565R/TLS8201	33,0 x 21,0	29,0 x 13,5	26,86 x 12,0	S	0,8pitch,28PIN
128 x 64	MTC3067FA	ST7565R-COG	46,0 x 36,0	41,8 x 26,1	39,281 x 22,831	S	0,8pitch,21pin
128 x 64	MTC3067FB	ST7565R-COG	46,0 x 36,0	41,8 x 26,1	39,281 x 22,831	S	0,8pitch,21pin
128 x 64	MTC3067FC	ST7565R-COG	46,0 x 36,0	41,8 x 26,1	39,281 x 22,831	S	0,5pitch,18pin
128 x 64	MTC3073FA	ST7565R	31,0 x 24,0	28,00 x 18,00	25,964 x 15	p	0,5pitch,28pin
128 x 64	MTC3073FB	ST7565R-COG	31,0 x 24,0	28,00 x 18,00	25,964 x 15	p	0,5pitch,28pin
128 x 64	MTC3073FC	ST7565R-COG	31,0 x 24,0	28,00 x 18,00	25,964 x 15	p	0,5pitch,28pin
128 x 64	MTC3074FA	ST7565R	38,0 x 32,0	34,00 x 22,00	30,7 x 17,265	p	0,5pitch,30pin
128 x 64	MTC3081FA	ST7567	38,0 x 32,4	30,0 x 22,22	27,36 x 19,17	P/S,6800/8080	0,8pitch,29pin
128 x 64	MTC3084FA	ST7565P-COG	34,0 x 24,2	29,58 x 16,22	25,58 x 14,06	P/S,6800/8080	0,5pitch,18PIN
128 x 64	MTC4009FA	ST7565P-COG	43,8 x 23,7	39,5 x 20	34,535 x 17,255	P,6800/8080	0,5pitch,28pin
128 x 64	MTC4011FA	ST7565R	42,3 x 33,0	40,00 x 22,00	37,10 x 19,82	S	0,5pitch,18pin
128 x 64	MTC4014FA	ST7565R	46,0 x 33,0	41,80 x 26,00	39,276 x 23,66	S	0,8pitch,21pin
128 x 64	MTC4015FA	ST7565R-COG	43,8 x 30,7	39,5 x 20	34,54 x 17,26	P,6800/8080	0,5pitch,28pin
128 x 64	MTC4016FA	ST7565R	43,0 x 30,0	40 x 22	39,02 x 20,98	P,6800/8080	0,8pitch,21pin
128 x 64	MTC4016FB	UC1701X	43,0 x 30,0	40 x 22	39,02 x 20,98	P,6800/8080	0,8pitch,21pin
128 x 64	MTC4016FD	UC1701X	45 x 33 x 3,4	40 x 22	39,02 x 20,98	P,6800/8080	0,8pitch,21pin
128 x 64	MTC5535FE	ST7565R	43,8 x 28,7	39,5 x 23,7	34,535 x 17,255	P,6800/8080	0,8pitch,28pin
128 x 64	MTC5535FH	ST7565R	43,8 x 28,7	39,5 x 23,7	34,535 x 17,255	P,6800/8080	0,8pitch,28pin
128 x 64	MTC5535FI	ST7565R	43,8 x 28,7	39,5 x 23,7	34,535 x 17,255	P,6800/8080	0,8pitch,28pin
128 x 64	MTC5587FA	TLS8201-COG	33,0 x 23,0	29,0 x 13,5	26,86 x 12,0	S	0,5pitch,21pin
128 x 64	MTC5587FB	TLS8201-COG	33,0 x 23,0	29,0 x 13,5	26,86 x 12,0	S	0,5pitch,21pin
128 x 64	MTC5587FC	TLS8201-COG	33,0 x 23,0	29,0 x 13,5	26,86 x 12,0	S	0,5pitch,21pin
128 x 64	MTC5587FD	TLS8201-COG	33,0 x 23,0	29,0 x 13,5	26,86 x 12,0	S	0,5pitch,21pin
128 x 64	MTC5587FE	TLS8201-COG	33,0 x 23,0	29,0 x 13,5	26,86 x 12,0	S	0,5pitch,21pin
128 x 64	MTC5917FB	ST7565P-COG	57,0 x 39,4	52,6 x 27,5	48,615 x 24,295	P/S,6800/8080	0,8pitch,30pin
128 x 64	MTC5917FC	ST7565P-COG	57,0 x 39,4	52,6 x 27,5	48,615 x 24,295	P/S,6800/8080	0,8pitch,30pin
128 x 64	MTC5917FD	ST7565P-COG	57,0 x 39,4	52,6 x 27,5	48,615 x 24,295	P/S,6800/8080	0,8pitch,30pin
128 x 64	MTC5918FA	ST7567	57,0 x 36,8	52,6 x 27,5	48,615 x 24,295	S	0,5pitch,20pin
128 x 64	MTC6001T	EM65565A-COG	69,1 x 50,0	65,5 x 38	60,775 x 32,935	P/S,6800/8080	0,8pitch,36pin
128 x 64	MTC6002FA	ST7565P-COG	63,0 x 35,5	60 x 26	49,5 x 21,99	P/S,6800/8080	0,8pitch,28pin
128 x 64	MTC6006FA	ST7565R	64,5 x 27,5	40,0 x 19,586	35,948 x 17,004	P	0,5pitch,28pin
128 x 64	MTC6010FA	ST7565R	71,4 x 52,3	66,5 x 38,0	60,78 x 32,	P	0,5pitch,28pin
128 x 64	MTC7002FA	ST7565P-COG	70,0 x 43,0	59,874 x 29,922	59,874 x 29,922	S	0,5pitch,20PIN
128 x 64	MTC7002FAN	ST7565P-COG	70,0 x 43,0	59,874 x 29,922	59,874 x 29,922	S	0,5pitch,20PIN
128 x 64	MTC7002FC	ST7565P-COG	70,0 x 43,0	59,874 x 29,922	59,874 x 29,922	S	0,5pitch,20PIN
128 x 64	MTC7002FD	ST7565P-COG	70,0 x 43,0	59,874 x 29,922	59,874 x 29,922	S	0,5pitch,20PIN
128 x 64	MTC7003FA	NT7532H-COG	71,8 x 50,5	65 x 41	62,68 x 34,52	P/S,6800/8080	0,5pitch,28PIN
128 x 64	MTC7008FA	NT7538H-COG	76,0 x 45,5	73 x 38	66,52 x 33,24	P/S,6800/8080	0,8pitch,36PIN
128 x 64	MTC3083FB	SH1106G	34,5 x 23 x 1,4	31,42 x 16,7	29,42 x 14,7	P/S,6800/8080	OLED,0,5pitch,30PIN,White
128 x 56	MTC2048FB	SPLC502B-COG	28,6 x 18,1	26,15 x 12,18	23,02 x 10,06	P,6800/8080	0,6pitch,28PIN
128 x 96	MTC4012FA	ST7541-COG	42,0 x 33,3	36 x 28	31,98 x 21,58	S	0,5pitch,20pin
128 x 96	MTC4012FB	ST7541-COG	42,0 x 33,3	36 x 28	31,98 x 21,58	P	0,5pitch,20pin
128 x 96	MTC4012FC	ST7541-COG	42,0 x 33,3	36 x 28	31,98 x 21,58	P	0,5pitch,20pin
128 x 96	MTC7007FA	ST7528-COG	70,0 x 57,0	66,14 x 48,6	60,14 x 44,14	P	0,8pitch,32pin
132 x 32	MTC3046FA	ST7565R-COG	34,5 x 15,0	31,9 x 9,5	29,02 x 7,02	S	0,8pitch,18PIN
132 x 32	MTC3046FB	ST7565R-COG	34,5 x 15,0	31,9 x 9,5	29,02 x 7,02	P,6800/8080	0,7pitch,28PIN
132 x 32	MTC3048FA	ST7538-COG	34,5 x 15,0	31,9 x 9,5	29,02 x 7,02	P/S,6800/8080	0,6pitch,49PIN
132 x 32	MTC3048FB	ST7538-COG	34,5 x 15,0	31,9 x 9,5	29,02 x 7,02	S	0,5pitch,28PIN
132 x 32	MTC3054FA	TLS8201-COG	34,5 x 15,0	31,9 x 9,5	29,02 x 7,02	P/S,6800/8080	0,6pitch,49pin
132 x 32	MTC3055FA	NT7538-COG	35,0 x 16,4	32,4 x 10	30,594 x 8,45	P/S,6800/8080	0,6pitch,49PIN
132 x 32	MTC3063FA	ST7565R-G	34,5 x 15,0	31,9 x 9,5	29,02 x 7,02	S	0,8pitch,18pin
132 x 32	MTC3068FA	ST7566R-G	34,5 x 18,0	32 x 10	29,67 x 8,45	S	0,5pitch,20pin
132 x 32	MTC4010FA	TLS8201	48,0 x 13,6	45 x 7,12	42,21 x 5,57	P	0,8pitch,18pin
132 x 33	MTC5005FA	NT7538-COG	51,1 x 23,6	44 x 14	42,22 x 10,54	P/S,6800/8080	0,5pitch,30PIN
132 x 64	MTC2034FA	ST7565R-COG	28,0 x 29,1	25,0 x 22,09	22,95 x 19,5	P,6800/8080	0,8pitch,28PIN
132 x 64	MTC2040FA	ST7565R-COG	28,0 x 22,1	25 x 18,06	22,948 x 12,460	P,6800/8080	0,8pitch,28PIN
132 x 64	MTC7005FA	ST7565-COG	75,0 x 54,4	70,99 x 41,41	67,95 x 38,37	S	0,5pitch,20PIN
132 x 64	MTC8002FA	ST7565-COG	83,6 x 44,1	79,56 x 40,12	76,52 x 37,08	S	0,5pitch,20PIN
132 x 64	MTC8003FA	ST7565P-COG	85,3 x 41,5	80,90 x 32,75	76,00 x 30,00	P	0,6pitch,28PIN
128 x 128	MTC3043FC	ST7571	33,0 x 38,3	30 x 30,3	26,855 x 26,855	P/8080	0,8pitch,36PIN
128 x 128	MTC3043FD	ST7571	34,8 x 40,1	30 x 30,3	26,855 x 26,855	P/S	0,5pitch,30PIN
128 x 128	MTC3079FA	ST7571	36,6 x 44,5 x 3,0	30,64 x 33,2	28,64 x 31,2	S	0,8pitch,15PIN
128 x 128	MTC4002B	ST7541-COG	47,0 x 44,5	41,8 x 33,8	38,375 x 31,335	P/S	0,8pitch,38PIN
128 x 128	MTC5006FA	ST7571	57,0 x 63,0	50 x 50	46,06 x 46,06	P/S	0,5pitch,28pin
128 x 128	MTC5006FB	ST7571	57,0 x 63,0	50 x 50	46,06 x 46,06	P/S	0,5pitch,28pin
160 x 25	MTC10005FA	IST3020	117,2 x 30,8	112,2 x 19,8	101,85 x 15,9	p	0,8pitch,30pin
160 x 128	MTC3085FA	SEPS525	39,9 x 34,0	34,57 x 26,86	33,57 x 26,86	P/S	0,8pitch,35pin,OLED
160 x 128	MTC5009FA	UC1698U	56,0 x 48,0	49,6 x 37,8	40,79 x 32,63	S	0,5pitch,30pin
172 x 104	MTC5010FA	ST75256	52,6 x 41,0	49,6 x 32,6	45,00 x 28,85	S	0,5pitch,18pin
192 x 64	MTC10001FB	IST3020	104,0 x 45,0	99,00 x 34,00	92,12 x 30,68	P	0,8pitch,30pin
192 x 64	MTC10006FA	UC1689U	108,6 x 65,0	102,90 x 36,2	97,486 x 32,46	S	0,5pitch,30pin
208 x 65	MTC6005FA	IST3020	67,0 x 30,0	60,425 x 20,385	58,225 x 18,185	P	0,5pitch,15pin
208 x 65	MTC6007FA	IST3017-COG	67,0 x 30,0	59,625 x 19,585	58,225 x 18,185	P	0,5pitch,15pin
320 x 80	MTC15001FA	UC1689U	158,5 x 47,5	153 x 37,5	145,57 x 32,45	p	0,5pitch,20pin
256 x 80	MTC8004FA	ST75256	81,0 x 38,0	78,0 x 30,0	71,66 x 22,38	S	0,5pitch,15pin
320 x 100	MTC14001FA	UC1689U	158,5 x 47,5	153 x 37,5	145,57 x 32,45	p	0,5pitch,20pin

KUNDENSERVICE

Call action
+49 (0) 6433 4774

Für weitere Informationen oder individuelle Beratung stehen wir Ihnen gerne zur Verfügung. Kontaktieren Sie uns, um die optimale Lösung für Ihre Anforderungen zu finden.

jetzt anfragen

Herausragende Displaytechnologie

Innovativ, brilliant, zuverlässig und energieeffizientfür industrielle Anwendungen.

Übersicht Microtech TFT

Übersicht Microtech LCD

Call action+49 (0) 6433 4774

Innovativ, brilliant, zuverlässig und energieeffizient
für industrielle Anwendungen.

Call action
+49 (0) 6433 4774
